Product Description
Overview

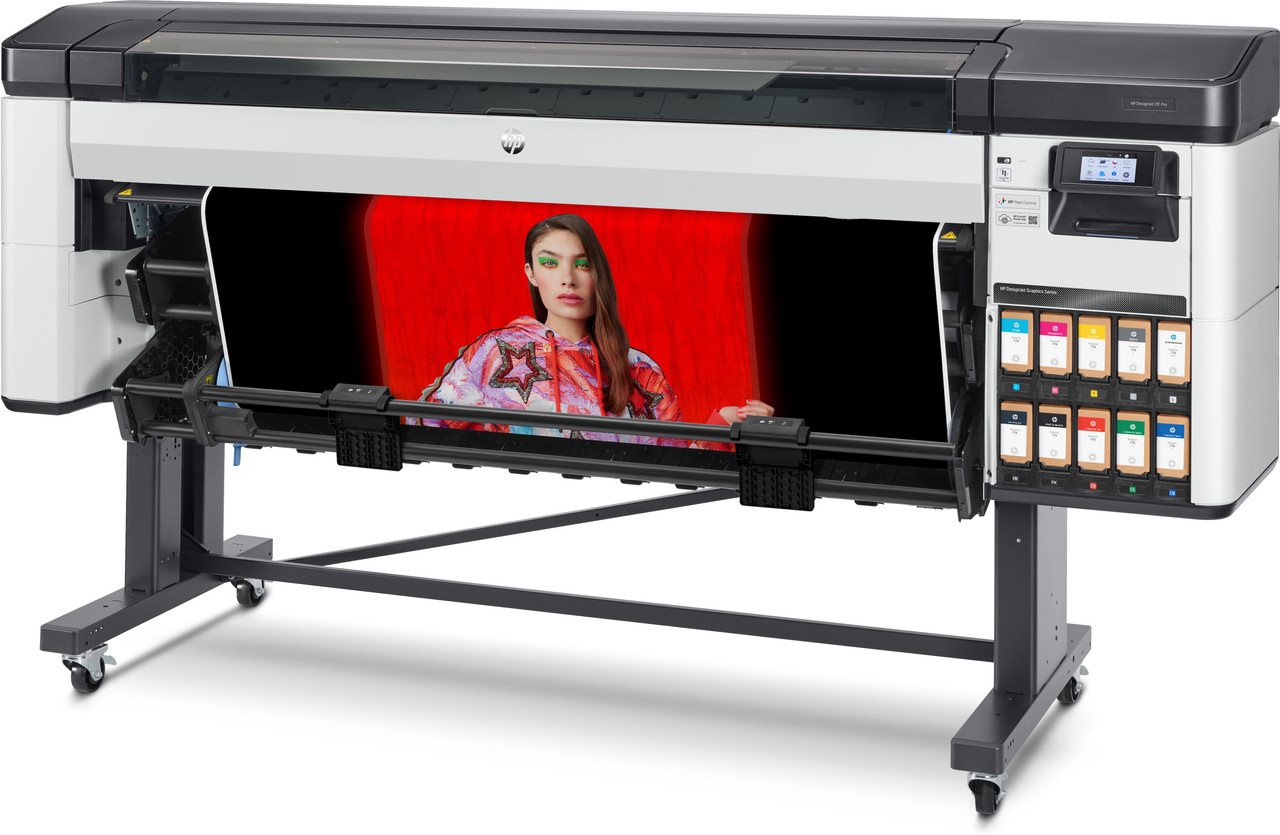

- Large-format printing for engineering, architectural, graphic arts and photo professionals.
- Highest professional photo quality at top production speed[1]
- This printer achieves the widest gamut in its category[1] with chromatic RGB HP Vivid Photo Inks. Take more jobs—print faster with better quality.[4] Monitor your performance and make data-driven decisions with HP Print Beat.[7]
Features
- Act fast—receive supplies, system, and connectivity status notifications via the HP PrintOS mobile app.[7]
- Easily share media presets remotely, gain visibility over operator routines with HP Configuration Center.[7]
- Monitor your performance and make data-driven decisions with HP Print Beat.[7]
- Increase uptime with universal and user-replaceable HP HDNA printheads, with dual drop weight technology.
- Reduce supplies interventions with recyclable 1-liter HP Eco-Carton ink cartridges.[6]
- Be more efficient—experience the fastest media handling, spindle-less and automatic roll feed.[5]
- Take more jobs—print up to 18% faster with better quality on satin photo media and 46% faster on canvas.[4]
- Get superior gloss uniformity using the optional HP Gloss Enhancer Upgrade Kit.[3]
- Get smooth gradients and reproduce distinct shades of colour with HP Pixel Control.
- Generate custom ICC profiles and achieve colour accuracy, consistency with the embedded spectrophotometer.[2]
- Achieves the widest gamut in its category[1] with chromatic RGB HP Vivid Photo Inks.
Product Videos
Specifications
| Spec | Description |
|---|---|
| Connectivity, standard | Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab) |
| Security features | HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5... |
| Finished output handling | One automatic roll feed, spindle-less system, optional multifunction roll accessory enabling either automatic second roll feed with smart roll-switching[6] or take-up reel capability, optional standalone take-up reel accessory, media output bin, a... |
| UNSPSC code | 43212104 |
| Copyright notice | The product could differ from the images shown. © 2014 Hewlett-Packard Development Company, L.P. The Information contained herein is subject to change without notice. Warranties for HP products and services are set out in the express warranty stat... |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | Apple AirPrint; ENERGY STAR; EPEAT; Gold IPv6 Ready; HP Pixel Control; i1 Color Technology; Mac; PANTONE* Digital Color; Windows 10 Compatible |
| Technology logo, print 8 | AHID/a6e83756a3ca20b047a0baab4bc9840b8a4073d2 |
| Technology logo, print 1 | Publication logos/energy star Tom apj.JPG |
| Technology logo, print 2 | AHID/93a68b8d94fd3b1ed6cdc04da868ac9d4e2a7fdd |
| Technology logo, print 3 | AHID/9ddc4d39a4d801bf3cd4eee32ed420a3ec519fdf |
| Technology logo, print 4 | AHID/7dd1fab03b56b0736cb73329b53d542f8c74700a |
| Technology logo, print 5 | Publication logos/mac tom apj.JPG |
| Technology logo, print 6 | AHID/50f2579767f95971e279228282cc0452a86d8bf2 |
| Technology logo, print 7 | Publication logos/win 10 tom apj.JPG |
| Print Technology | Ink |
| Print cartridge volume delivered | 1 liter |
| Number of print cartridges | 9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray), optional gloss enhancer |
| Print heads | 5 universal printheads (valid for all colors) |
| Ink types | Pigment-based |
| Ink drop | 7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG) |
| Color(s) of printing supplies | Cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray |
| Print head nozzles | 3136 per color; 28,224 in total |
| Memory | 86 GB file processing (based on 4 GB RAM) |
| Power consumption | 150 W (printing); <35 W (ready); <9 W (sleep); <0.3 W (off) |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 3 A max |
| What's in the box | HP DesignJet Z9+ Pro Printer, printheads, introductory ink cartridges, maintenance cartridge, printer stand and media bin, 3-in core adapter, quick reference guide, setup poster, power cord, user maintenance kit |
| Media thickness (metric) | Up to 0.6 mm |
| Media types | Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit |
| Media weight, recommended | 80 to 500 g/m² |
| Media width, maximum | 1626 mm; 64 in |
| Package weight | 264 kg; 582 lb |
| Weight | 375 lb; 170 kg |
| Media sizes standard (metric rolls) | 420 to 1626-mm |
| Media sizes standard (sheets, rolls) | 16.5 to 64-in |
| Roll external diameter | 170 mm; 6.7 in |
| Roll maximum input | 2 |
| Roll maximum weight | 25 kg; 55.1 lb |
| Media thickness | Up to 23.6 mil |
| Supported Primary Applications | Banners; Canvas; Digital fine art; Exhibition and event graphics; Graphics design; Indoor posters; Light boxes - paper; Photos; Point of sale/display; POP/POS |
| Recommended media | Q6583A HP Universal Instant-dry Satin Photo Paper (FSC® certified)[7] (Recyclable)[8];E4J58B HP Artist Matte Canvas;C6977C HP Heavyweight Coated Paper (FSC® certified)[7] (Recyclable)[8];CH027A HP Everyday Matte Polypropylene, 2 Pack (Recyclable)[... |
| Software included | HP Click printing software, HP PrintOS, HP Partner Link, HP DesignJet Accounting Tool, HP Web Jetadmin, HP SmartTracker (optional), HP SmartStream (optional), HP JetAdvantage Security Manager (optional) |
| Safety | IEC 60950-1+A1+A2 and IEC 62368-1 compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); Argentina (IRAM); Singapore (PSB), China (CCC) |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR 3.0, WEEE, EU RoHS, China RoHS, REACH, EPEAT |
| Dynamic security | Dynamic security enabled printer |
| Datasheet photo 1 | AHID/ebd01a3de65792404b118b1cca2455b42b9df923 |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 5 to 40°C; 41 to 104ºF |
| Storage temperature range | -20 to 55°C; -4 to 131ºF |
| Acoustic power emissions (active, printing) | ≤6.9 B(A) (operating), ≤4.3 B(A) (idle), <4.0 B(A) (sleep) |
| Acoustic pressure emissions | 52 dB(A) (operating), 25 dB(A) (idle), <20 dB(A) (sleep) |
| Manufacturer Warranty | One-year limited warranty. Warranty and support options vary by product, country and local legal requirements. |
| Print speed | Fast: 98 m²/hr on plain media; Normal: 29 m²/hr on coated media; Best: 14.1 m²/hr on glossy media[1]; Fast: 1055 ft²/hr on plain media; Normal: 312 ft²/hr on coated media; Best: 152 ft²/hr on glossy media[1] |
| Maximum optical density (black) | 4 L* min/2.5 D[5] |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Minimum dimensions (W x D x H) | 2605 x 790 x 1402 mm; 102.6 x 31.1 x 55.2 in |
| Package dimensions (W x D x H) | 2800 x 750 x 1302 mm; 110.2 x 29.5 x 51.3 in |
| Non-printable area (roll media) | 5 x 5 x 5 x 5 mm; 0.2 x 0.2 x 0.2 x 0.2 in |
| UPC number | (ABG) 195908148753; (ACJ) 195908511618; (B19) 195908148760; (B1K) 195908148784; (BCD) 195908148791 |
| Printer drivers included | Raster drivers for Windows, raster drivers for macOS; PDF driver for Windows and PostScript driver for macOS with optional PostScript/PDF Upgrade Kit |
| Optional printer languages | Adobe PostScript 3, Adobe PDF 1.7 |
| Print languages | TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL |
| Theoretical minimum line width | 0.0008 in[3]; 0.02 mm[3] |
| Print repeatability | Average < 0.5 dE2000, 95% of colors < 1.4 dE2000[5] |
| Line accuracy | ±0.1%[2] |
| Functions | |
| Color accuracy | Median < 1.6 dE2000, 95% of colors < 2.8 dE2000[4] |
| Color Stability | < 1 dE2000 in less than 5 minutes[5] |
| Model size | 1626 mm; 64 in |
| Internal Storage | 500 GB self-encrypting |
| Printing path | Print drivers, HP Click, printing support for Chrome OS, HP Print Service Plugin for Android, HP Smart app for iOS and Android, HP SmartStream, Apple AirPrint |
| Additional information about HP in the countries | http://www.hp.com/uk |
| Additional information about HP | http://www.hp.com |
| Web address for additional information | http://www.hp.com/go/DesignJet-Z9-Pro |
| Facet Subcategory | Large format |
| Facet Product type | Professional Photo-quality Printers; Production Printers |
| Facet Sub brand | DesignJet |
| Facet Primary applications | Advertising posters, roll-ups, and banners; Photo and art; Design and illustrations; Indoor signage; Décor |
| Facet Media size maximum (mm) | 1626 |
| Facet Media size maximum (in) | 64 |
| Facet Monthly printed pages | Continuously |
| Facet Taxonomy | Large Format Printers/ Plotters |
