Product Description

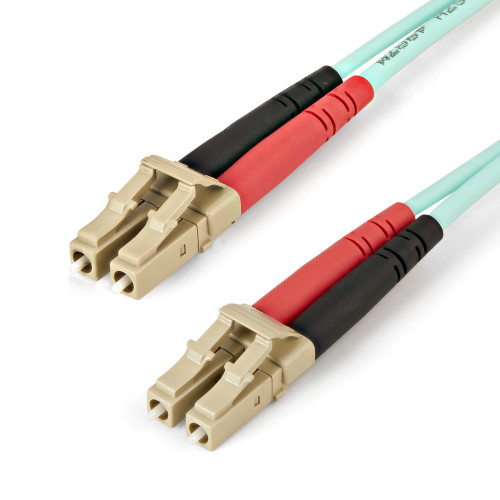

This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment.
This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
The 450FBLCLC3 from StarTech.com is backed by a lifetime warranty.
Features
- OM4
- 3 m
- LC Male
- LC Male
- Jacket material: Low smoke zero halogen (LSZH)
- 100 Gbit/s
- Full duplex Multi-mode
- Aqua colour
Product Videos
Specifications
| Spec | Description |
|---|---|
| Cable length | 3m |
| Cladding diameter | 125µm |
| Connector 1 | LC |
| Connector 1 gender | Male |
| Connector 2 | LC |
| Connector 2 gender | Male |
| Core diameter | 50µm |
| Data transfer rate | 100Gbit/s |
| Doesn't contain | Halogen |
| Fiber mode structure | Multi-mode |
| Fibre optic type | OM4 |
| Full duplex | Yes |
| Harmonized System (HS) code | 85447000 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operating temperature (T-T) | -20 - 60°C |
| Package depth | 220mm |
| Package height | 15mm |
| Package weight | 54g |
| Package width | 200mm |
| Product colour | Aqua colour |
| Storage temperature (T-T) | -20 - 60°C |
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Wavelengths supported | 850nm |
| Weight | 47g |
