Product Description
Overview

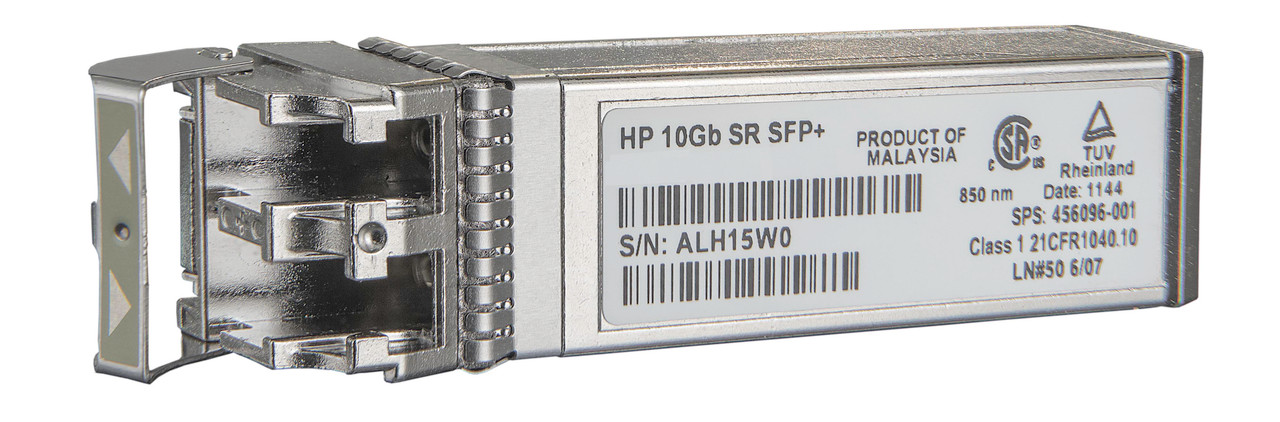

- A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 400m on OM4 multi-mode fiber.
Features
- 10Gb Ethernet transmission rate with SFP+ form factor
- Low power consumption at <0.8W for SR, <1W for LRM and LR
- Duplex LC connector
- Transmissions are up to 300m on MMF (SR), up to 220 m MMF (LRM) and 10 km on SMF (LR)
Other Details
1 Year Limited Warranty (Return to HPE - Unit Exchange)Product Videos
Specifications
| Spec | Description |
|---|---|
| Product long name specifications | HP BladeSystem c-Class 10Gb Long Range Small Form-Factor Pluggable Option |
| Connector type | LC |
| Fiber type | Single Mode |
| Transceiver form factor | SFP+ |
| Ports | 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-LR) Duplex: full only |
| Wavelength | 1310 nm |
| Maximum distance | 2m-10km with 9/125 ?m single-mode cable |
| Cable type | Low metal content, single-mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2 Type B1 |
| Product dimensions (H x W x D) | 2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19cm) |
| Weight | 0.04 lb. (.02 kg) |
