Product Description
Overview
- Large-format printing for engineering, architectural, graphic arts and photo professionals.
- Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions.[2] It's responsibly designed to help you save energy[4] and reduce plastics use[7]. Plus, it’s compact and adaptable—to fit the way you work.
- HP’s smallest plotters[1]—intuitive and responsibly designed.
Features
- Save space with HP's smallest plotters[1] designed to fit your office.
- Avoid waiting by the printer with printing as fast as 35 seconds per A1/D plot.[12]
- Protect your printer from cyberthreats with HP Wolf Essential Security.
- Get high-quality results—HP Bright Office Inks deliver better line accuracy[13] and up to 34% more gamut.[14]
- Print your jobs and manage your plotter virtually anywhere, anytime with the HP app.[4]
- Simplify printing with the new HP Click Print solutions—save time with real-print preview.[2]
- With an accessory, print multi-size A4/A to A1/D projects without manually switching the media source.[3]
- Made with at least 40% recycled plastic[8] and the first HP large format printer containing recycled metal.[9]
- Save 65% energy[5] with the printer on/off auto scheduler and enjoy efficient ink maintenance routines[6].
- Minimise plastic waste by more than 50% with a new molded fiber packaging and removal of most plastic bags.[7]
- Certified by UL ECOLOGO®.[10] Registered in EPEAT Gold and achieves EPEAT Climate+[11].
Product Videos
Specifications
| Spec | Description |
|---|---|
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct |
| UNSPSC code | 43212104 |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | AirPrint; ENERGY STAR; EPEAT Climate+ Gold; Carbon Neutral; Gold IPv6 Ready; Hi-Speed USB; UL Validated; Wi-Fi CERTIFIED; Windows 11 Compatible |
| Copyright notice | The product could differ from the images shown. © Copyright 2023 HP Development Company, L.P. The Information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warra... |
| Ink drop | 5.5 pl (C, M, Y); 12 pl (K) |
| High capacity of page yield (colour) | 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines[2] |
| Print Cartridge/Bottle, Color(s) | Cyan, magenta, yellow, black |
| Print head nozzles | 1376 |
| Color ink technology | Pigment; Dye |
| Number of cartridges | 4 |
| Cartridge volume | Less than 130 ml |
| Print cartridge/bottle volume | 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge |
| Ink types | Dye-based (C, M, Y); pigment-based (K) |
| Print Cartridges/Bottle, Number | 4 (C, M, Y, K) cartridges |
| Print heads | 1 (cyan, magenta, yellow, black) |
| Memory | 512 MB |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| Power consumption | <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off) |

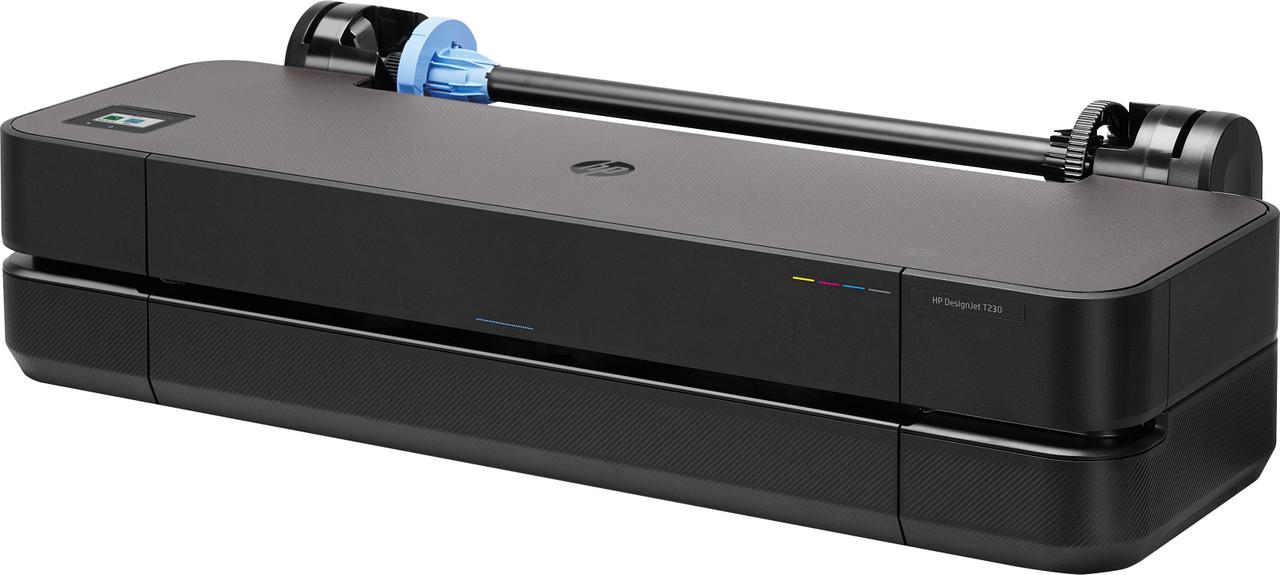

| What's in the box | HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
| Maximum roll diameter | 3.9 in |
| Media sizes standard (sheets, rolls) | 11 to 24 in |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene) |
| Media sizes standard (metric rolls) | 279 to 610 mm |
| Media weight, recommended | 60 to 280 g/m² |
| Media width, maximum | 610 mm; 24 in |
| Roll external diameter | 100 mm; 3.9 in |
| Roll maximum input | 1 |
| Roll maximum weight | 4.1 kg; 9 lb |
| Media thickness | Up to 11.8 mil |
| Supported Primary Applications | Line drawings; Presentations; Renderings |
| Printer Applications | Architecture; Engineering; Construction; Technical documents; Presentation graphics |
| Roll size | Up to 24 in |
| Finished output handling | Sheet feed, roll feed; automatic horizontal cutter |
| Media thickness maximum (metric) | Up to 0.3 mm |
| Media sizes, custom | 8.3 x 11 to 24 x 74.7 in; 210 x 279 to 610 x 1897 mm |
| Media sizes supported | A4, A3, A2, A1; A, B, C, D |
| Recommended media | HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6];HP Coated Paper (FSC® certified)[5] (recyclable)[6];HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] |
| Package weight | 27 kg; 59.5 lb |
| Weight | 47.4 lb; 21.5 kg |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP; EPEAT Climate+ Gold; UL Ecologo |
| Safety | USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE) |
| Sustainability Impact | ENERGY STAR®; EPEAT® |
| Software included | HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS |
| Technology logo 8 | AHID/362daf9ec247a5f8f32a8965eb98fb71299dd6dc |
| Technology logo 9 | AHID/9307ee2362db2e62a5ecd6d9ef7bfc9fa20ab626 |
| Datasheet photo 1 | AHID/5a2cfe6bc7b3862aee1e64bda39d78a9d2d7795d |
| Technology logo 1 | AHID/461085c1b740909bae1c0b88638e669f7e1c8782 |
| Technology logo 2 | Publication logos/energy star Tom apj.JPG |
| Technology logo 3 | AHID/8f2b0446d02d2e54e6c123f11ebdbbd8ada83f43 |
| Technology logo 4 | AHID/945487f2bd084417f5faf1dc22fc2c60d9acd6f2 |
| Technology logo 5 | Publication logos/wi fi tom apj.JPG |
| Technology logo 6 | AHID/9d5a86c2ad5a518a084188cb02e02944ce6dd92f |
| Technology logo 7 | AHID/25703585f45c14f5879b159e43544b4669b14304 |
| Dynamic security | Dynamic security enabled printer |
| Country of origin | China(BCD, ABG, AKV, ACJ, B19, AC4, B1K); Switzerland(BCD, B19, AC4); Thailand(ABA, B1K) |
| Energy Usage CO2e (kg) | 77 |
| Total CO2e (kg) note | A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in ... |
| Total CO2e (kg) | 310 |
| Production CO2e (kg) | 200 |
| End of Life CO2e (kg) | 15 |
| Transportation CO2e (kg) | 14 |
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), <3.4 B(A) (idle) |
| Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
| Operating humidity range | 20 to 80% RH |
| Non-Operating Humidity Range | 0 to 95% RH |
| Operating temperature range | 5 to 40ºC; 41 to 104ºF |
| Storage temperature range | -25 to 55ºC; -13 to 131ºF |
| Post consumer recycled plastic in hardware by weight of plastic | 40% |
| Operating altitude | Up to 3000 m; Up to 9843 ft |
| Manufacturer Warranty | One-year limited hardware warranty |
| Playbook TS icon display AiO | https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c08169148.png |
| Playbook TS icon connectivity | https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c08201987.png |
| Playbook TS icon dimensions AiO | https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c08192862.png |
| Print speed | Greater than 30 sec/page on D size; 35 sec/page on D, 68 D prints per hour[1]; 35 sec/page on A1, 68 A1 prints per hour[1] |
| Technical features | Wi-Fi;Color Touchscreen;Start-up Ink Cartridges;USB port for PC connection;Max resolution 2400 x 2400 dpi;Roll cover accessory;Automatic sheet feeder accessory;Output stand bin accessory |
| Package dimensions (W x D x H) | 1155 x 575 x 405 mm; 45.5 x 22.6 x 15.9 in |
| Dimensions (W x D x H) | 39.9 x 17.3 x 11.2 in; 1013 x 440 x 285 mm |
| UPC number | (ABG) 198701026549; (AC4) 198701413844; (ACJ) 198701026563; (AKV) 198701413851; (B19) 198701026570; (B1K) 198701413868; (BCD) 198701026617 |
| Security features | HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartr... |
| Maximum optical density (black) | 8 L* min/2.10 D[4] |
| Print quality color (best) | Up to 2400 x 1200 optimised dpi |
| Print Technology | Ink |
| Functions | |
| Theoretical minimum line width | 0.02 mm; 0.0008 in |
| Printer drivers included | Raster driver for macOS and Windows, HP Click Driver for Windows 11 |
| Print languages | JPEG, URF |
| Non-printable area (cut-sheet) | 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray); 0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray) |
| Printing path | HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing |
| Non-printable area (roll media) | 5 x 5 x 5 x 5 mm; 0.2 x 0.2 x 0.2 x 0.2 in |
| Internal Storage | None |
| Remote print enabled | Yes |
| Print multi-size files in one click | Yes |
| Line accuracy | ±0.1%[3] |
| Model size | 610 mm; 24 in |
| Additional information about HP in the countries | http://www.hp.com/uk |
| Additional information about HP | http://www.hp.com |
| Web address for additional information | http://www.hp.com/go/designjett230 |
| Orderable supplies | HP Original Ink: HP 712 cartridges (Black, Cyan, Magenta, Yellow), and HP 713 printhead |
| Facet Color or black | Color |
| Facet Media size maximum (mm) | 610 |
| Facet Monthly printed pages | Occasionally |
| Facet Primary applications | Office documents and presentations; Engineering and construction documents |
| Facet Sub brand | DesignJet |
| Facet Segment | Business |
| Facet Product type | Office Printers for CAD and GIS |
| Facet Subcategory | Large format |
| Facet Media size maximum (in) | 24 |
| Facet Taxonomy | Large Format Printers/ Plotters |
| Facet Functions | Print only |
| Facet Features | Touchscreen; Automatic document feeder; Front USB flash drive port |
| Facet Connectivity | Apple AirPrint™; Ethernet networking; USB; Wireless (Wi-Fi®); Wireless direct printing |
