Product Description
Overview

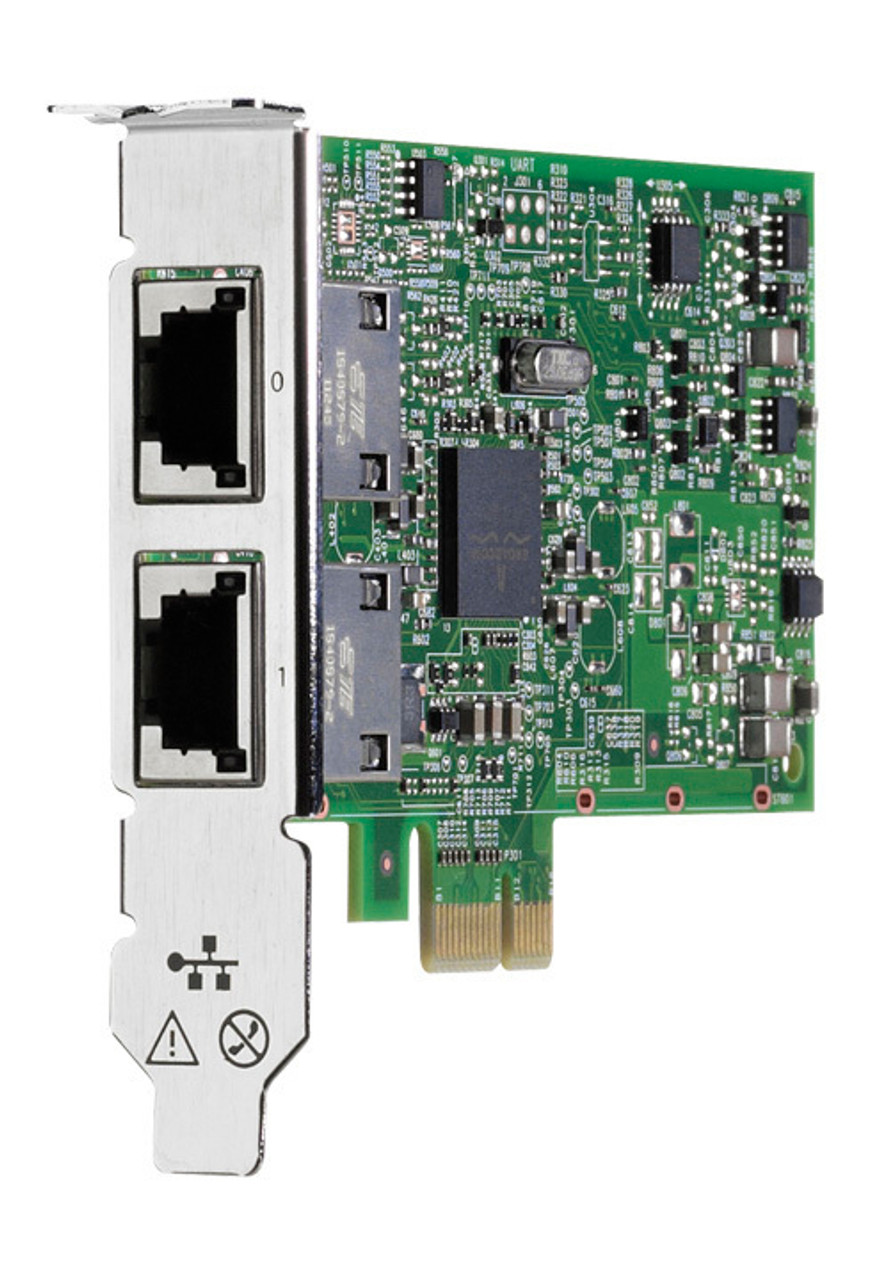

- Need a cost effective 1GbE Solution for your HPE ProLiant server? The HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter is a dual-port, low-cost, low profile 1Gb adapter featuring a PCIe 2.0 compliant form factor designed for select HPE ProLiant ML/DL/SL servers. It delivers full line-rate performance across all ports with low power consumption, providing Ethernet connectivity ideal for virtualization, security, server consolidation, and network segmentation. Supported advanced features include Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588 (Precision Time Protocol – PTP), and virtualization features such as VMware NetQueue and Microsoft Virtual Machine Queue (VMQ). Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Features
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
- Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
- An aggregate, full duplex transfer rate of 4 Gb/s per adapter improves response times and alleviates bottlenecks.
- Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.
- Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.
Other Details
1 Year Limited Warranty (Return to HPE - Unit Exchange)Product Videos
Specifications
| Spec | Description |
|---|---|
| Quickspec Date | 7 |
| QuickSpecs Date | 10/31/2028 12:00:00 AM; 05/06/2019 12:00:00 AM |
| QuickSpecs (PDF) | https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00047730enw |
| QuickSpecs (HTML) | https://www.hpe.com/h20195/v2/gethtml.aspx?docname=a00047730enw |
| Data rate | 1Gb |
| Form factor | Standup |
| Number of ports | 2-port |
| Technology | Network processor |
| Protocol supported | Ethernet, 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as |
| Network controller | 1Gb 332T 2-port |
| Port speed | 4 Gbps |
| Power availability | 2W (maximum) |
| Transfer rate | 1 Gb/sec |
| Bus type | PCIe Gen2 x1 |
| Facet Port count (faceturl) | 2 |
| Facet Form factor (faceturl) | standup-pci |
| Facet Server Family (faceturl) | proliant-dl-ml |
| Facet Port speed (faceturl) | 1-gb |
| Facet Protocols (faceturl) | ethernet |
| Facet Features (faceturl) | base |
| Facet Product type (faceturl) | standard |
| Facet Connectivity (faceturl) | base-t |
| Facet Port count (facet) | 2 |
| Facet Port speed (facet) | 1 Gb |
| Facet Protocols (facet) | Ethernet |
| Facet Form factor (facet) | Standup PCI |
| Facet Server Family (facet) | ProLiant DL/ML |
| Facet Features (facet) | Base |
| Facet Product type (facet) | Standard |
| Facet Connectivity (facet) | BASE-T |
