Product Description
Overview

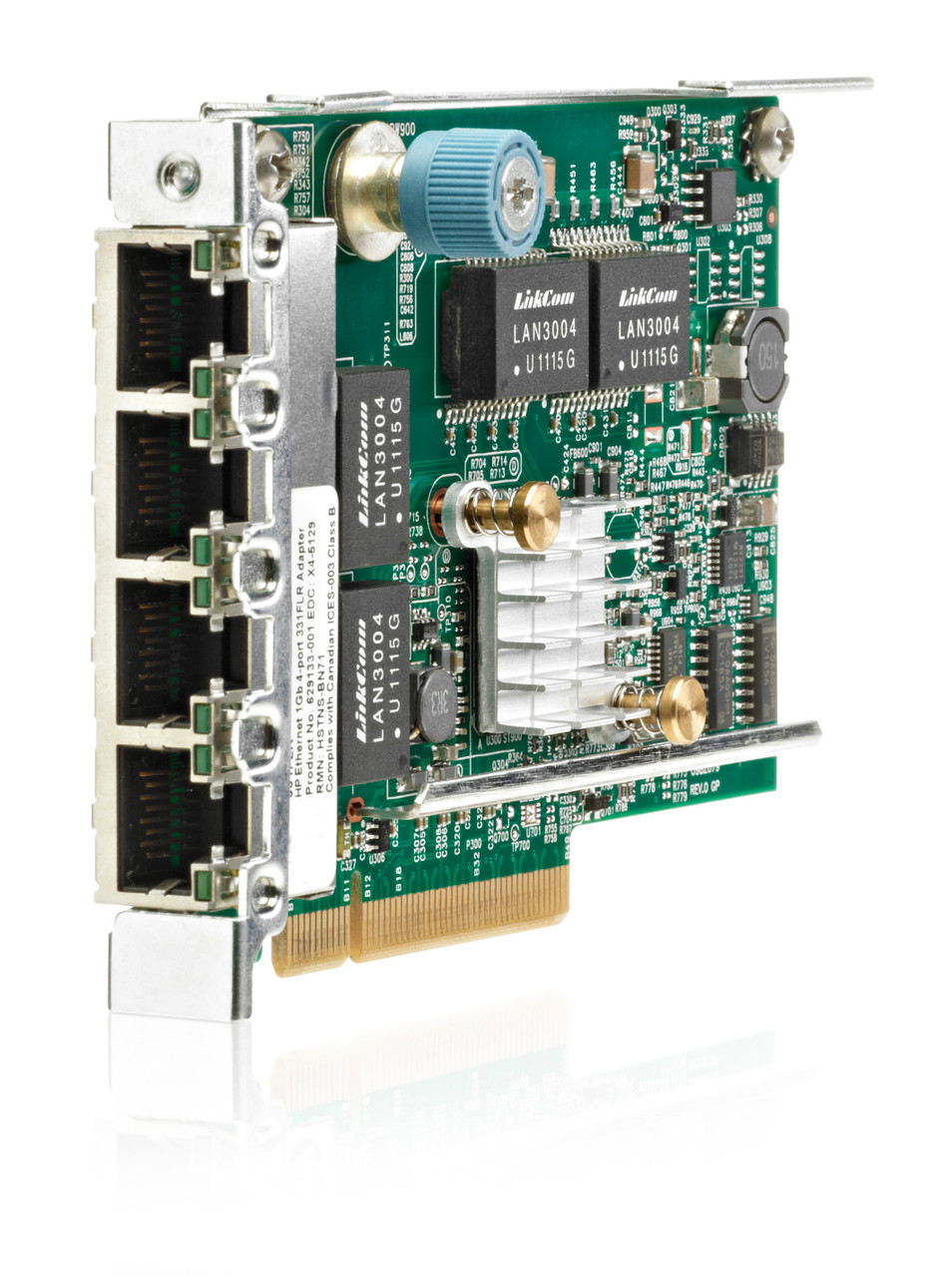

- Do you need low power, high port density 1GbE network adapters for virtualization and server consolidation? The HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter for select HPE ProLiant servers features the next generation of Ethernet integration, offering a single-chip solution in a FlexibleLOM form factor, which offers the option for future upgrades to 10GbE networking speeds. It delivers full line-rate performance across all ports with low power consumption. The adapter is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4 Gb meets the needs of customers desiring high bandwidth. The adapter supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, HPE Sea of Sensors 3D and virtualization features such as VMware NetQueue and Microsoft VMQ.
Features
- Replaceable FLexibleLOM enables easy upgrade from 1GbE to 10GbE.
- An aggregate, full duplex transfer rate of 8 Gb/s per adapter delivers outstanding network performance that improves response time and removes bottlenecks.
- Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties.
- Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads.
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
Product Videos
Specifications
| Spec | Description |
|---|---|
| QuickSpecs (PDF) | https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00047730enw |
| QuickSpecs (HTML) | https://www.hpe.com/h20195/v2/gethtml.aspx?docname=a00047730enw |
| Quickspec Date | 7 |
| QuickSpecs Date | 10/31/2028 12:00:00 AM; 05/06/2019 12:00:00 AM |
| Number of ports | 4-port |
| Data rate | 1Gb |
| Transfer rate | Maximum, depending on model |
| Form factor | ALOM |
| Technology | Network processor |
| Bus type | PCIe 2 x4 |
| Facet Port speed (faceturl) | 1-gb |
| Facet Connectivity (faceturl) | no-cable-needed |
| Facet Features (faceturl) | base |
| Facet Form factor (faceturl) | flexiblelom |
| Facet Server Family (faceturl) | apollo; proliant-dl-ml |
| Facet Protocols (faceturl) | ethernet |
| Facet Product type (faceturl) | standard |
| Facet Port count (faceturl) | 4 |
| Facet Port speed (facet) | 1 Gb |
| Facet Connectivity (facet) | No cable needed |
| Facet Features (facet) | Base |
| Facet Form factor (facet) | FlexibleLOM |
| Facet Server Family (facet) | Apollo; ProLiant DL/ML |
| Facet Product type (facet) | Standard |
| Facet Protocols (facet) | Ethernet |
| Facet Port count (facet) | 4 |
