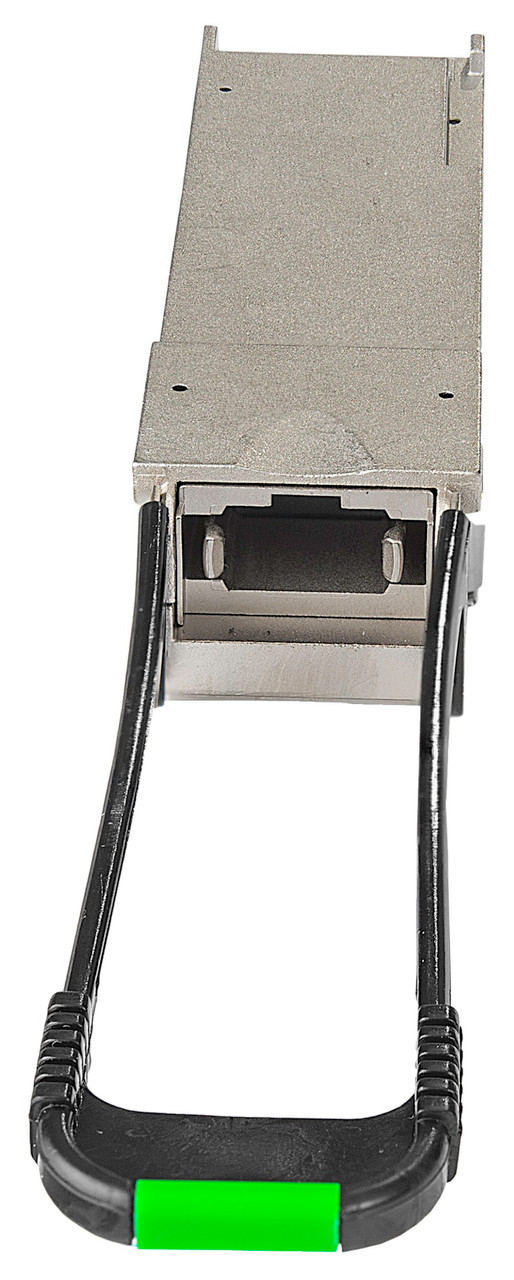

- Do you need high-performance QSFP+ transceivers for your BladeSystem? The HPE BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.
Features
- Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4.
- MPO connector (SR4) or LC connector (LR4).
- Can be used either for 40GbE or for aggregating 4x 10GbE links.
- Supports 4 lanes x 10.3 Gb/s.
- Supports link distances up to 100 m on OM3 MMF and 150 m on OM4 MMF for SR4 and up to 10 km on SMF for LR4.
Product Videos
Specifications
| Spec | Description |
|---|---|
| QuickSpecs | ##QUICKSPECS## |
| QuickSpecs (HTML) | https://www.hpe.com/psnow/doc/c04312725.html?jumpid=in_pdp-psnow-qs |
| QuickSpecs (PDF) | https://www.hpe.com/psnow/doc/c04312725.pdf?jumpid=in_pdp-psnow-qs |
| QuickSpecs Date | ##QUICKSPECS##; 10/31/2028 12:00:00 AM; 11/15/2021 12:00:00 AM |
| Quickspec Date | ##QUICKSPECS##; 7 |
| UNSPSC code | 43201553 |
| Weight | 35g |
| Product Dimensions (metric) | 13.18 x 1.835 x 1.371cm |
| Maximum distance | Up to 100m (OM3) up to 150m (OM4) |
| Cable type | OM3, OM4 |
| Connector type | MPO |
| Fiber type | Multi-mode |
| Transceiver form factor | QSFP+ |
| Ports | 1 MPO 40-GbE port (IEEE 802.3ba Type 40Gbase-SR4) Full Duplex |
| Wavelength | 850 nm |
| Warranty | 1 Year Limited Warranty (Return to HPE - Unit Exchange) |
