Product Description
Overview
- The HPE Direct Attach Cables provide connections to meet the exponential data growth in data centers and cloud-based services.
Features
- RoHS compliant.
- HPE Direct Attach Cables offers a cost-effective alternative to fiber optics.
- SFF-8665 compliant.
Other Details
1 Year Limited Warranty (Return to HPE - Unit Exchange)Product Videos
Specifications
| Spec | Description |
|---|---|

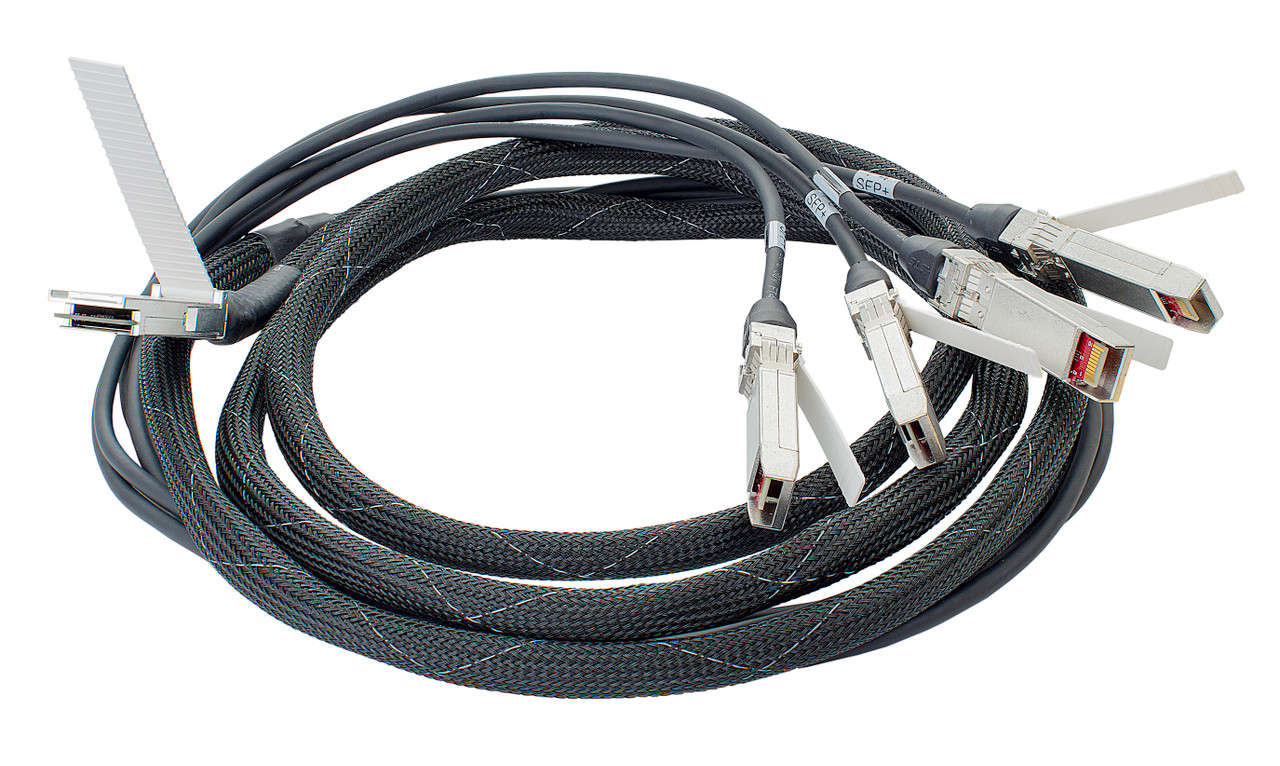

| What's in the box | (1) HP BladeSystem c-Class 40G QSFP to 4x10G SFP 3m Direct Attach Copper Splitter Cable |
| Product long name specifications | HP BladeSystem QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Cable |
| Transceiver form factor | QSFP+ transceiver at one end and 4 SFP+ transceivers at the other end of the cable |
| Cable type | Direct Attach Splitter Cable |
| Crosstalk | 26dB max |
| Time delay | 1.32 nsec/ft |
| Minimum cable bend radius | SFP+ end: 0.7" QSFP+ end: 1.78" |
| Product dimensions (H x W x D) | 11.22 x 19.09 x 9.05 in |
| Weight | 1 lb; 0.45 kg |
| Minimum dimensions ( H x W x D) | 28.5 x 48.49 x 22.99 cm |
| Cable diameter | 0.175" for each SFP+ fan out cable |
| Cable length | 3m |
| Facet Cable type (faceturl) | copper |
| Facet Cable type (facet) | Copper |
