Product Description
Enable meeting equality

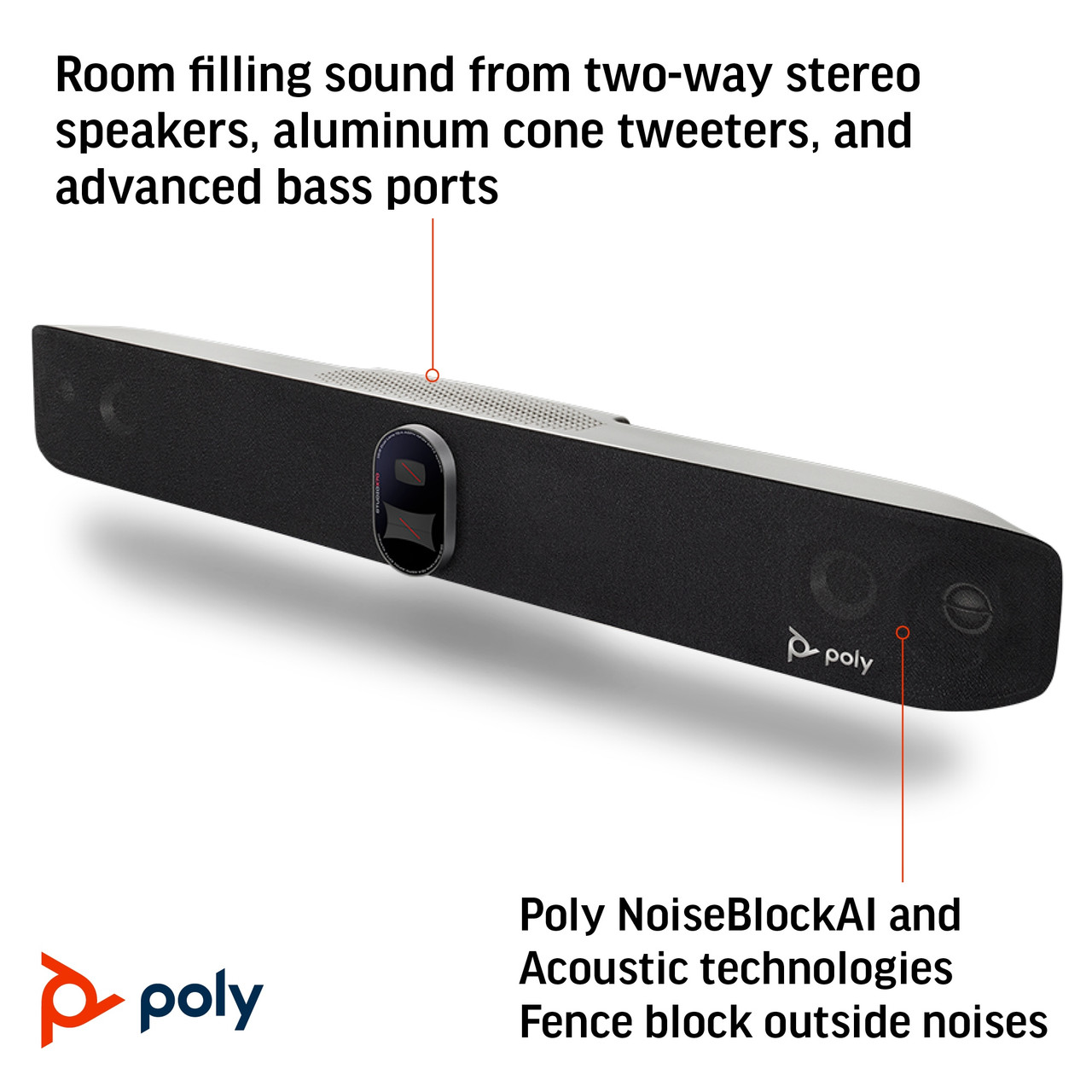

The Poly Studio X70, all-in-one video bar, offers quality audio and video performance in large meeting spaces. Enjoy pinpoint-accurate automatic framing and tracking modes, distraction-free audio technology, and lifelike 4K UltraHD video.
Features
- Group video conferencing system
- Auto framing
- 4K Ultra HD 3840 x 2160 pixels
- Built-in speaker(s) RMS rated power: 40 W
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi
- Dual camera 20 MP 7.3x
- Black
Product Videos
Specifications
| Spec | Description |
|---|---|
| Auto framing | Yes |
| Built-in speaker(s) | Yes |
| Cables included | AC, HDMI, LAN (RJ-45) |
| Camera type | Dual camera |
| Depth | 117.3mm |
| Diagonal field of view | 140° |
| Digital zoom | 7.3x |
| Display diagonal | 20.3cm |
| Display resolution | 1280 x 800pixels |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000Mbit/s |
| HD type | 4K Ultra HD |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| HDMI ports quantity | 3 |
| Heat dissipation | 65BTU/h |
| Height | 135.4mm |
| Horizontal field of view | 120° |
| Maximum video resolution | 3840 x 2160pixels |
| Meeting features | Whiteboard |
| Megapixel (approx.) | 20MP |
| Number of microphones | 4 |
| Number of speakers | 2 |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 0 - 40°C |
| Packaging content | Poly Studio X70; AC power adapter; HDMI cable; Power cable; CAT 5E LAN cable; Poly TC10 touch controller; Display mounting clamp |
| Product colour | Black |
| Product type | Group video conferencing system |
| RMS rated power | 40W |
| Second camera resolution | 20MP |
| Security algorithms | 128-bit AES, 256-bit AES, FIPS 140-2, SSL/TLS |
| Speaker power | 20W |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70°C |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported network protocols | IPv4, IPv6 |
| Supported video modes | 720p, 1080p, 2160p |
| Tracking modes | Presenter mode |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| VESA mounting | Yes |
| Video formats supported | AVC, H.264, H.265 |
| Voice codecs | G.711, G.719, G.722, G.722.1, G.728, G.729A |
| Wall mountable | Yes |
| Weight | 3.2kg |
| Width | 840.2mm |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Zoom capability | Yes |
