Product Description

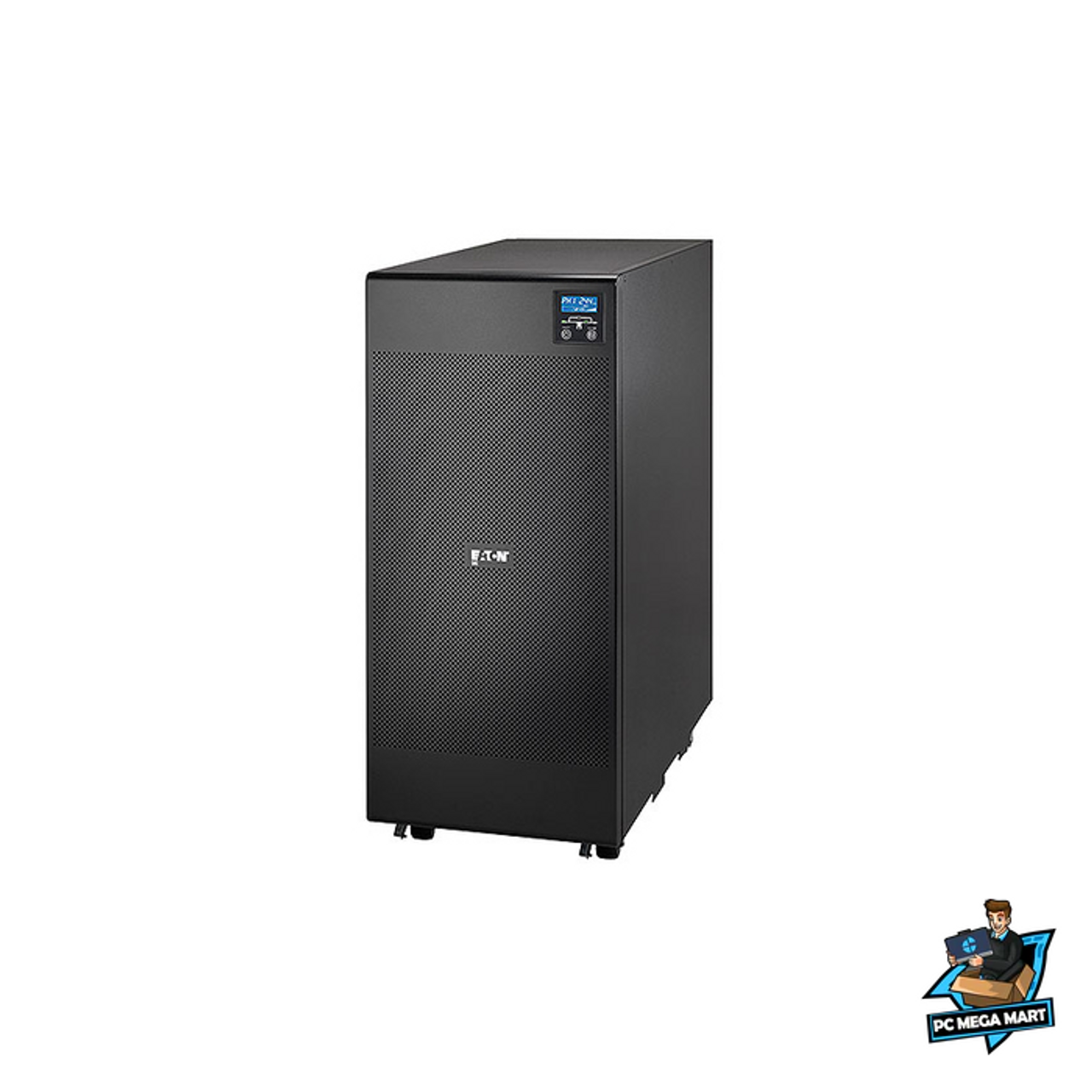

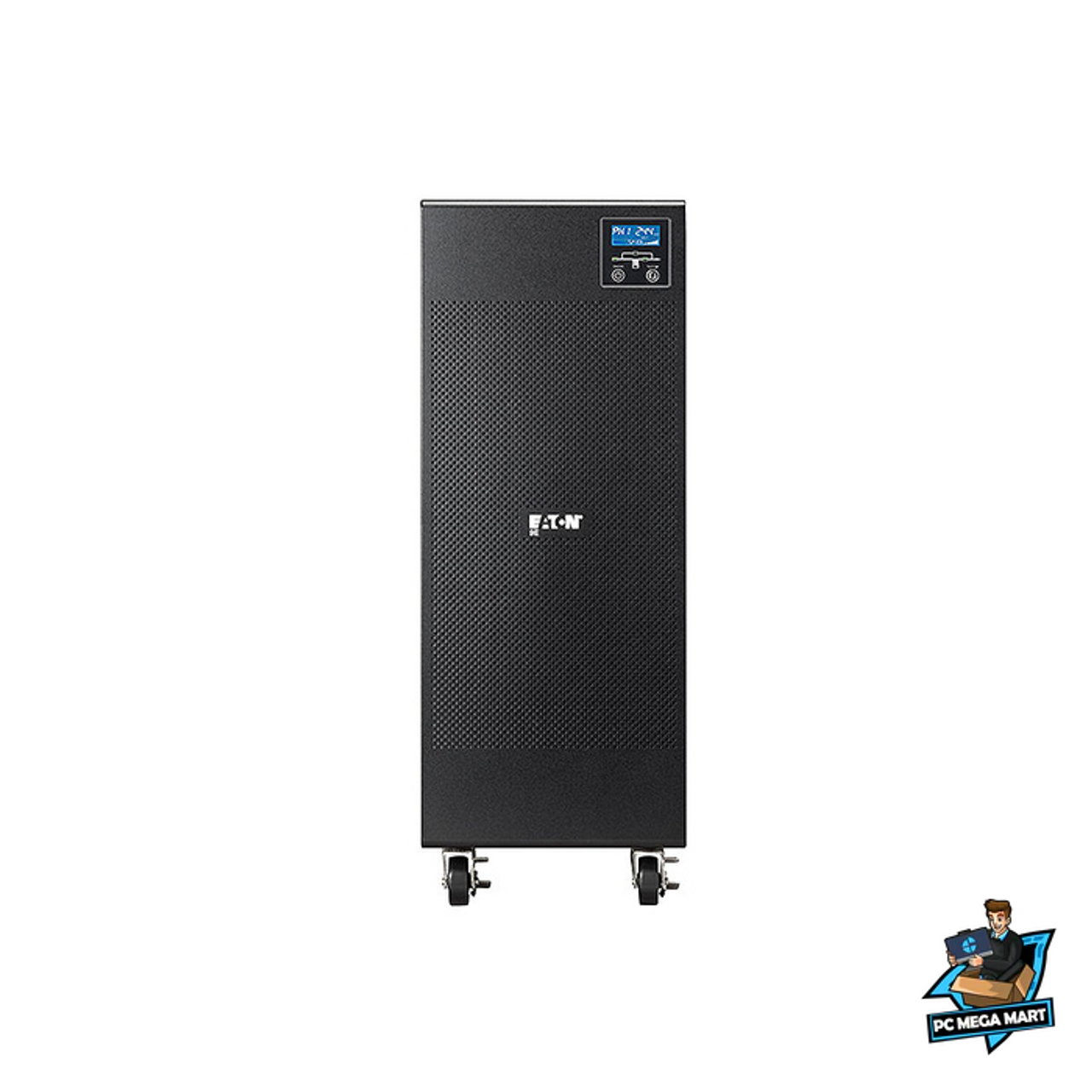

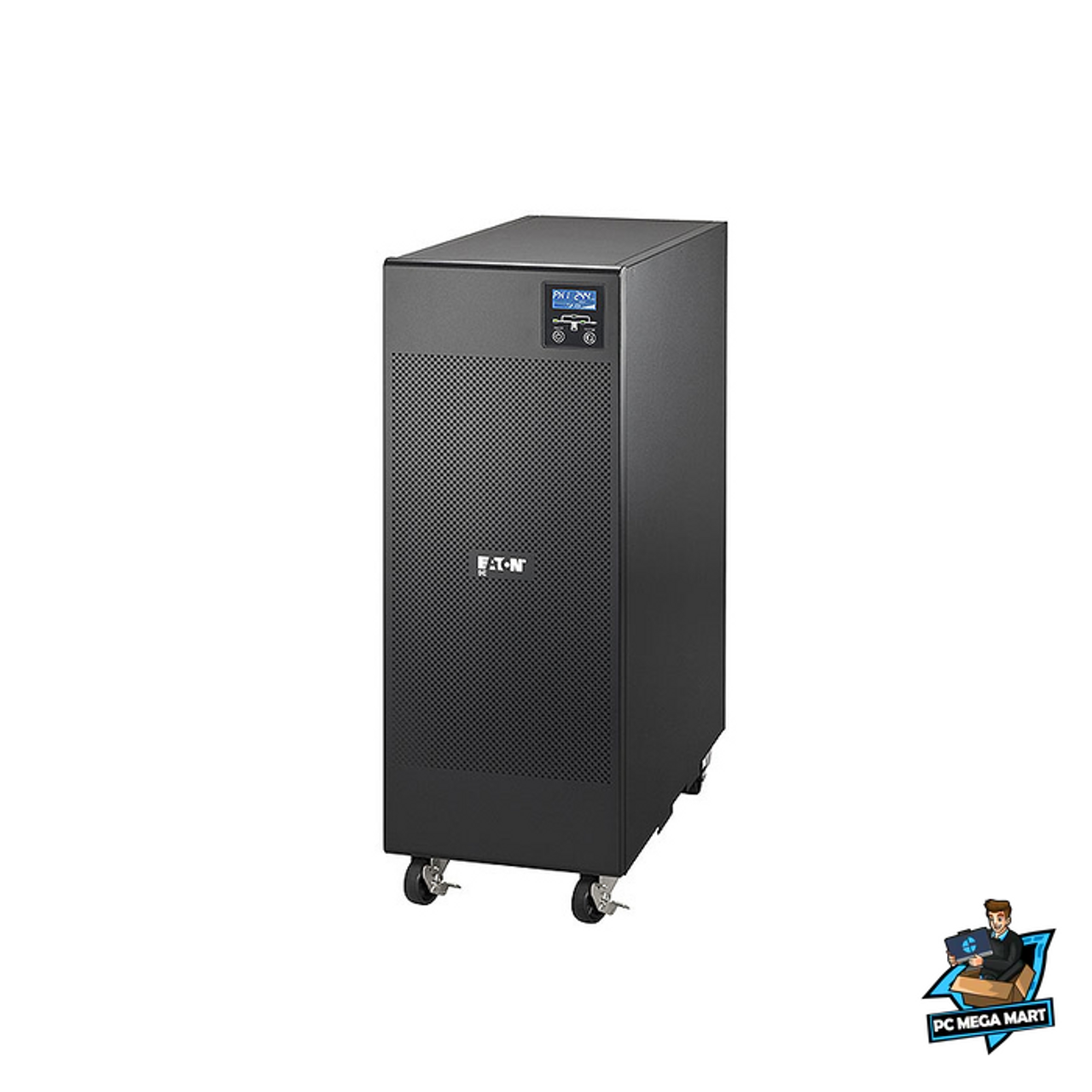

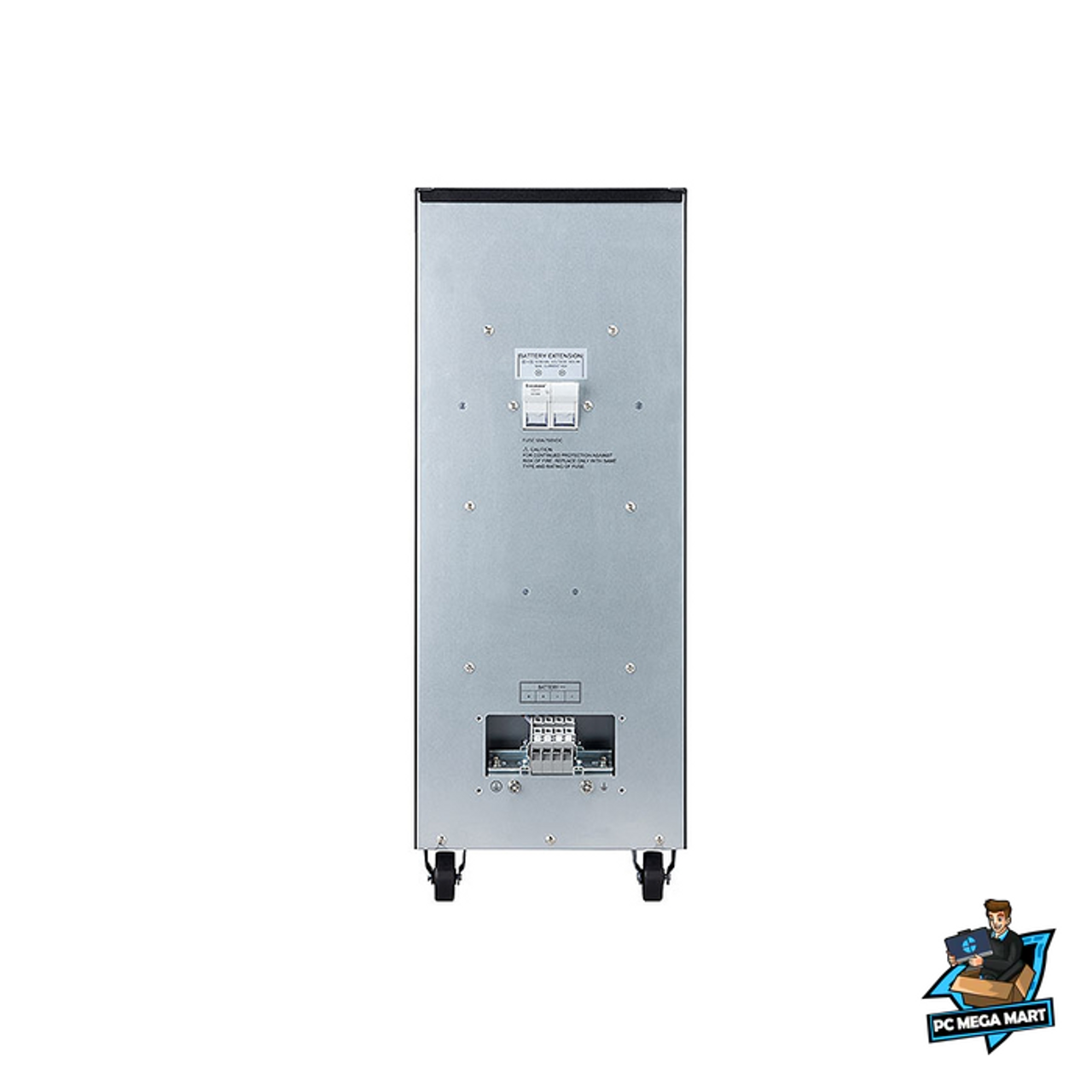

The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.Features
- Online double conversion topology.
- Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status.
- Provides more real power (watts) to protect more equipment with a 0.8 power factor.
- Internal bypass and maintenance bypass are available as standards.
- Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA.
- XL models with internal supercharger for extra-long runtime.
- Communication through USB, RS232 serial or over the network with an optional network card.
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat).
- CE compliance certified by external agency (CB report from the TUV).
Product Videos
Specifications
| Spec | Description |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6000 |
| Output power | 4800 |
| Input operation voltage (min) | 176 |
| Input operation voltage (max) | 276 |
| Input frequency | 45/66 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Maximum current | 82 |
| Efficiency | 93 |
| Noise level | 55 |
| AC outlet types | Terminal |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Typical backup time at full load | 5 |
| Form factor | Tower |
| Product colour | Black |
| Safety | IEC/EN 62040-1 |
| Certification | IEC/EN 62040 -2, CE, CB |
| Operating temperature (T-T) | 0 - 40 |
