Product Description

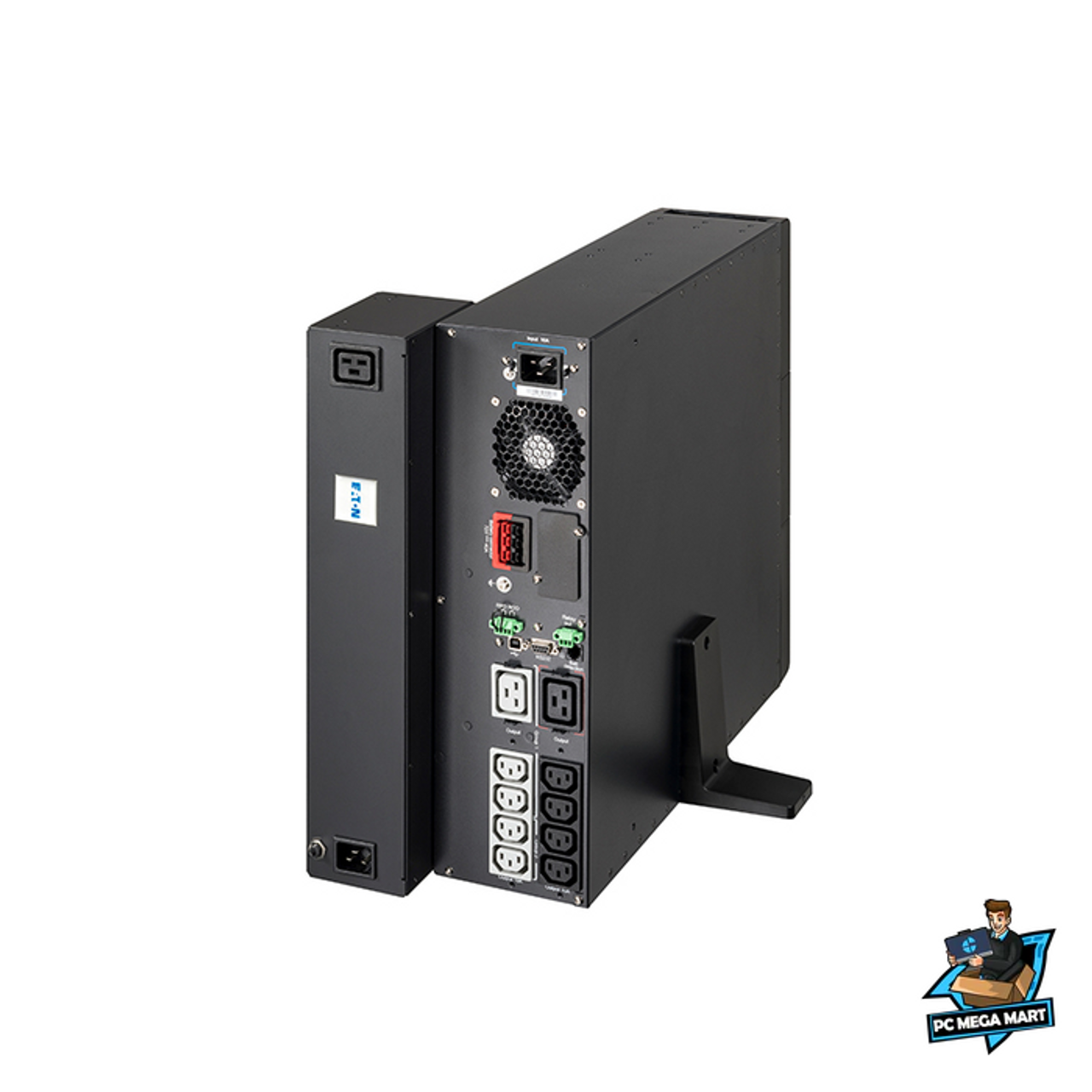

The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.Product Videos
Specifications
| Spec | Description |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1500 |
| Output power | 1500 |
| Input operation voltage (min) | 176 |
| Input operation voltage (max) | 276 |
| Input frequency | 40/70 |
| Output operation voltage (min) | 200 |
| Output operation voltage (max) | 240 |
| Efficiency | 97.5 |
| Power factor | 1 |
| Noise level | 35 |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Grey |
| Display | LCD |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2 IEC/EN 62040 -2, FCC Class B, CISPR22 Class B DNV-GL / CE /CB (TUV) / cULus / EAC /RCM / KC |
| Operating temperature (T-T) | 0 - 40 |
