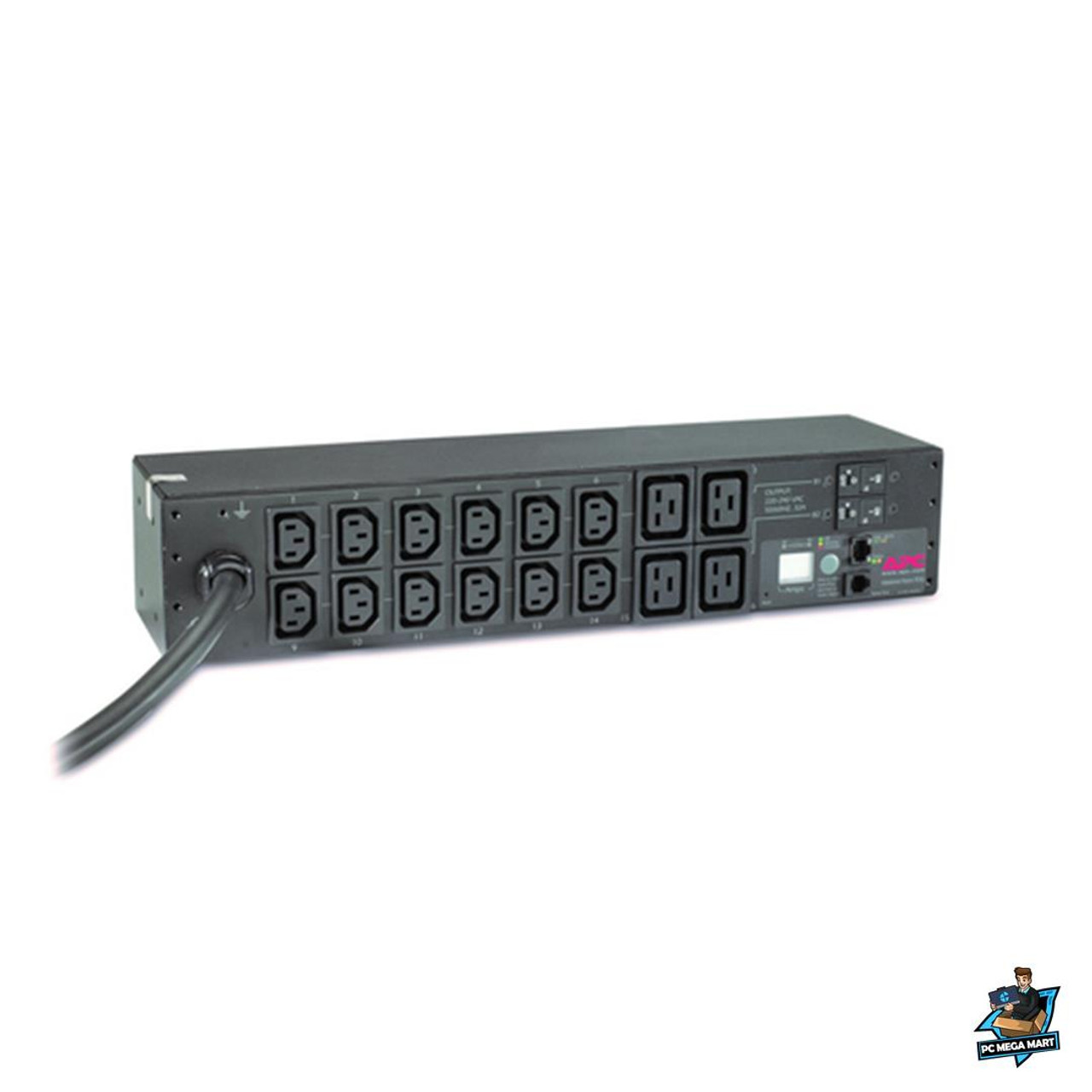

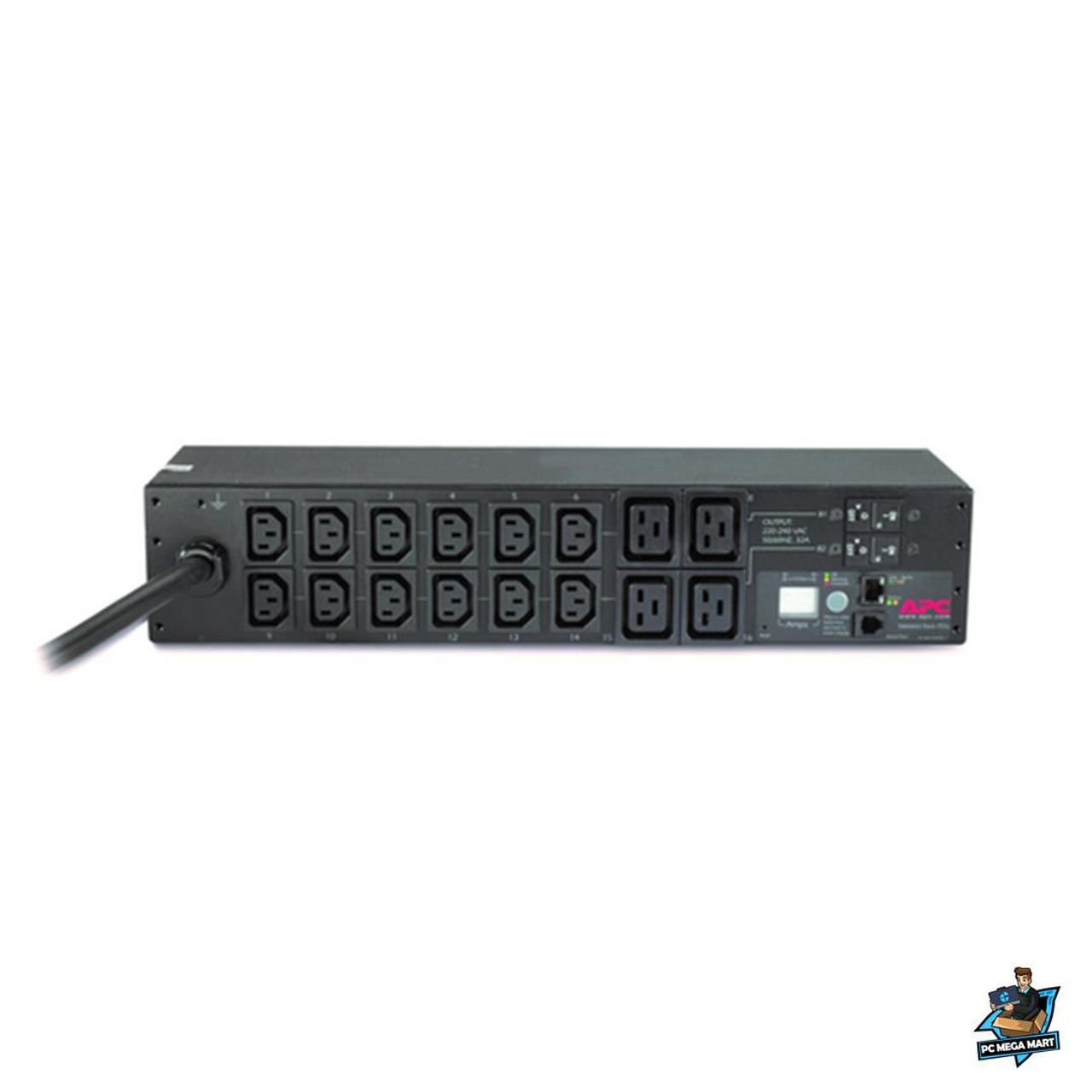

Product Description
Resettable circuit breakersEnables a quick recovery from overload events.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Product Videos
Specifications
| Spec | Description |
|---|---|
| PDU types | Metered |
| Rack capacity | 2U |

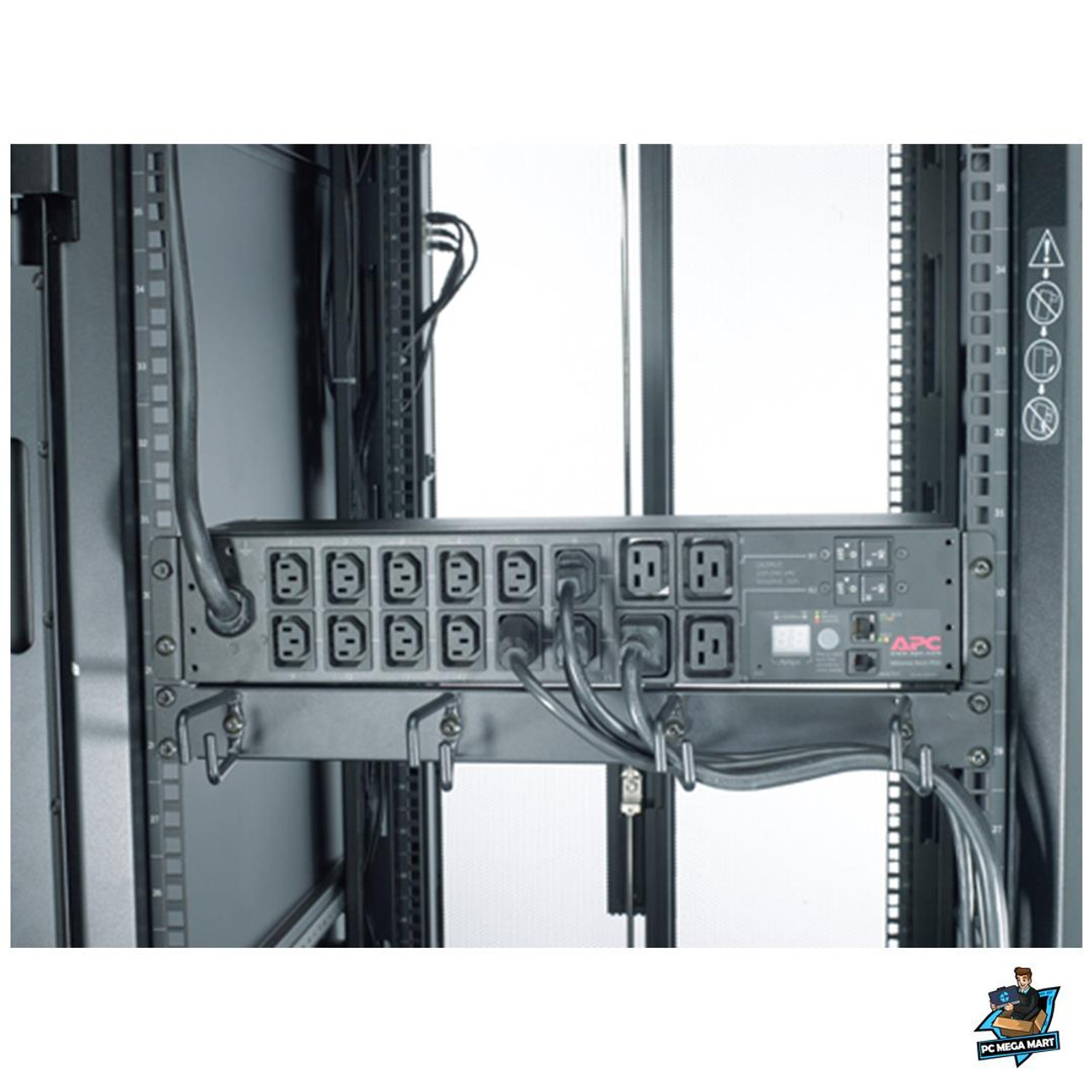

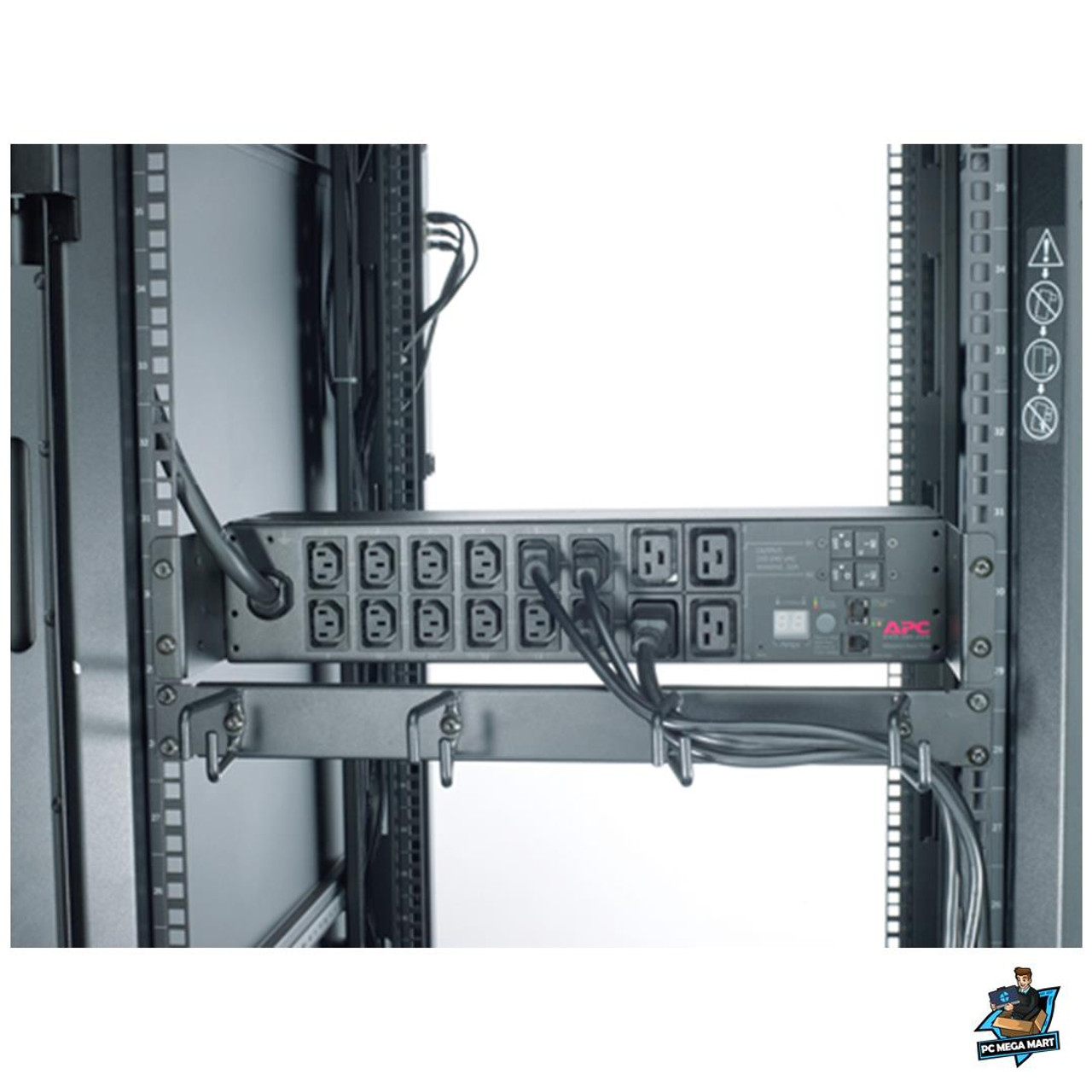

| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 16 |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 32A 2P+E |
| Output connections | 12 x C13 4 x C19 |
| Cable length | 3.66 |
| Certification | C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
| Monitoring | Current, Power, Voltage |
| Nominal input voltage | 208-230 |
| AC input frequency | 50 - 60 |
| Maximum current | 32 |
| Load capacity | 7680 |
| Maximum input current per phase | 32 |
| Maximum total current draw per phase | 32 |
| Power protection features | Overload |
| Maximum power | 7680 |
| Package dimensions (WxDxH) | 508 x 368 x 140 |
| Package weight | 5410 |
| Operating temperature (T-T) | -5 - 45 |
| Storage temperature (T-T) | -25 - 65 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
