Product Description
Interconnect Box | HDMI, VGA and DisplayPort Inputs | HDMI Output

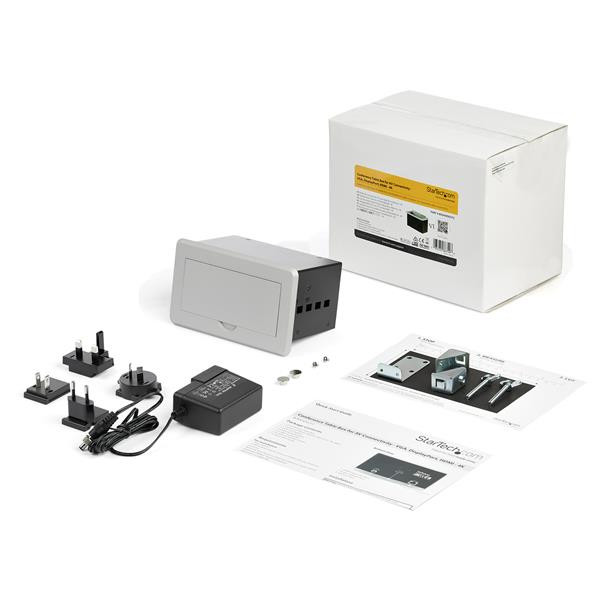

This conference table connectivity box for A/V installs in your table or lectern to provide A/V, networking, and USB charging connectivity in your boardroom, auditorium, or classroom. The box makes it easy to connect HDMI, DisplayPort and VGA laptops to your room’s large HDMI display, and provides LAN and USB power connectivity for charging USB devices. The box also provides some boardroom cable management by hiding connectivity cables in your table.
Collaborate Easily Using the Big Screen
The table box enables presenters in your conference room to easily share their laptop screen on the room’s large display or projector, with supported resolutions up to 4K 30Hz.
To share video from virtually any laptop, the table box supports HDMI, VGA and DisplayPort inputs and automatically outputs the most recently connected input to the HDMI display.
Provide Convenient USB Charging and Wired Network Connectivity

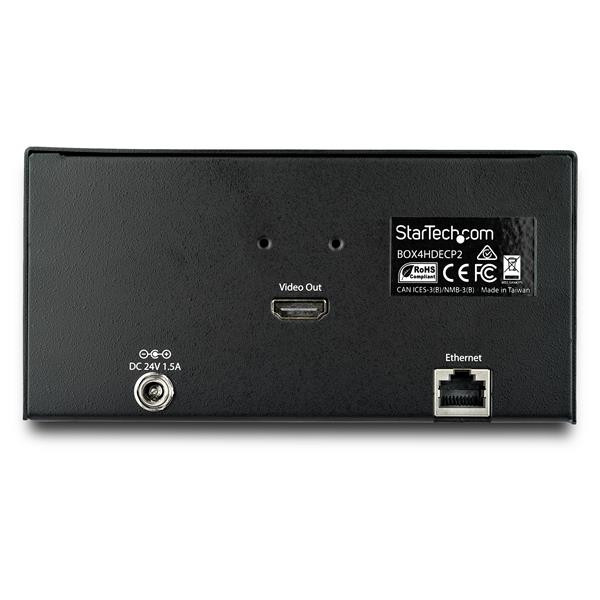

Enabling visitors in your conference room to charge their iPhone, iPad, smartphone, or tablet, the table box features three USB charge ports. Plus, the box features an Ethernet pass-through port to provide secure wired network connectivity in rooms where Wi-Fi isn’t available.
Add Style and Technological Sophistication to Any Room
The boardroom interconnect box has an aluminum finish that complements your space. The hideaway panel eliminates clutter by discreetly covering the connection ports when they’re not in use.
TAA compliant BOX4HDECP2 is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Easily collaborate by connecting your HDMI, VGA or DisplayPort laptop to your conference room’s HDMI display, from a single access point
- Charge your phone or tablet, with three accessible USB charge ports
- Add style and technological sophistication to your conference room or auditorium by building an A/V connectivity box into your table with a pop-up panel that hides ports when they’re not in use
Product Videos
Specifications
| Spec | Description |
|---|---|
| AC adapter included | Yes |
| AC adapter input voltage | 100 - 240V |
| AC adapter output current | 2A |
| AC adapter output voltage | 12V |
| Audio input | 3.5 mm |
| Certification | CE, FCC, TAA, REACH |
| Depth | 170mm |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| External power supply | Yes |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI version | 1.4 |
| Height | 98mm |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Maximum cable length | 15.2m |
| Maximum resolution | 3840 x 2160pixels |
| Mounting brackets included | Yes |
| Number of screws | 2 |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 40°C |
| Package depth | 170mm |
| Package height | 98mm |
| Package weight | 1.8kg |
| Package width | 100mm |
| Power consumption (typical) | 24W |
| Power plug type | Type N |
| Product colour | Silver |
| Quick start guide | Yes |
| Screws included | Yes |
| Storage temperature (T-T) | -20 - 60°C |
| Supported aspect ratios | 16:9 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Sustainability certificates | RoHS |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 3 |
| USB pass-through | Yes |
| VGA (D-Sub) input ports | 1 |
| Weight | 1.7kg |
| Width | 100mm |
