Product Description
Overview

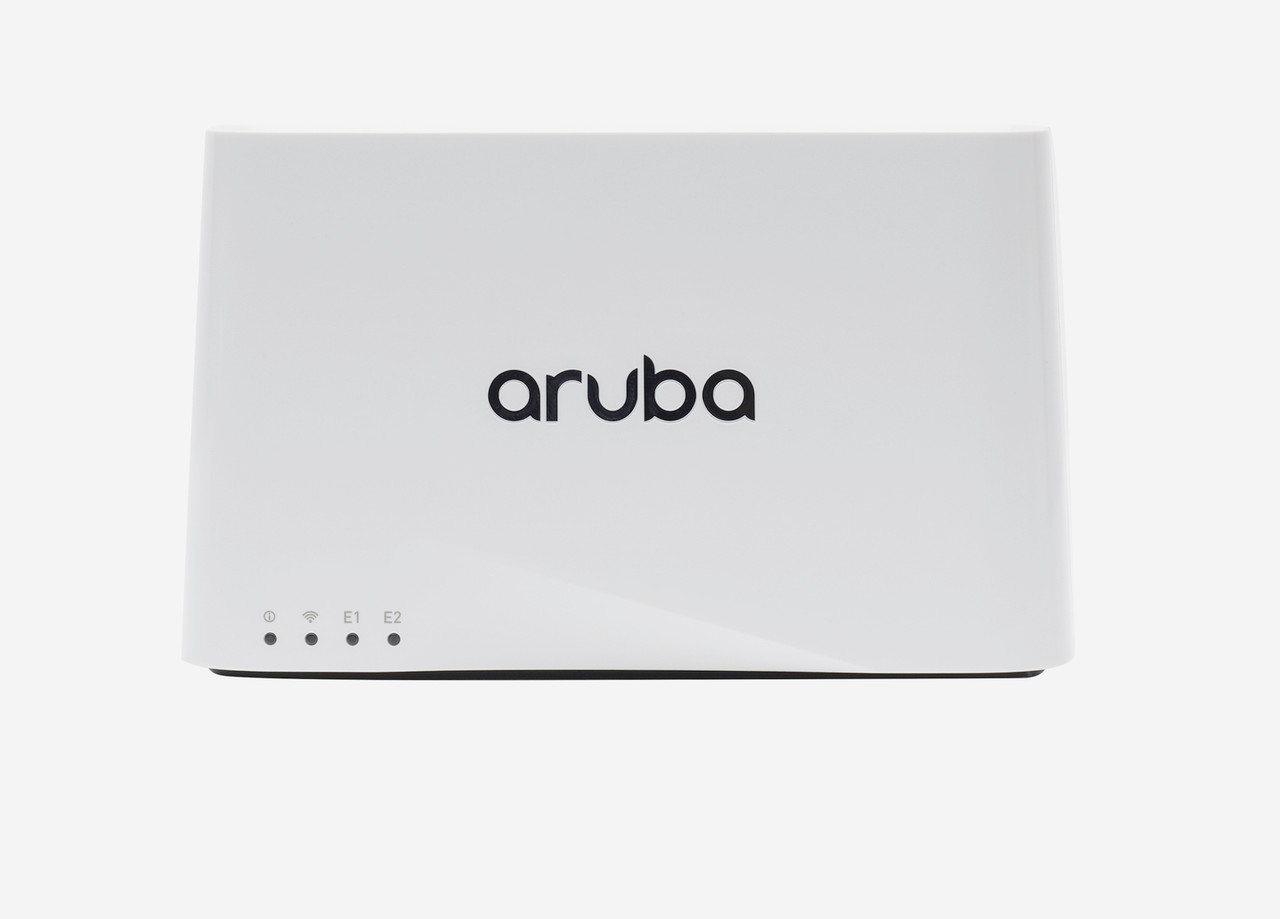

- Aruba 203R Series Unified Remote Access Points deliver secure and fast IEEE 802.11ac wireless and wired network access to corporate resources for branch and home offices. Unique in the industry, the compact Aruba 203R remote AP is software-configurable to operate in either 1x1 dual-radio mode, or 2x2 single-radio mode. It supports up to 867 Mbps in the 5 GHz band or up to 400 Mbps in the 2.4 GHz band when operating in single-radio 2x2 mode. In dual-radio 1x1 mode, the maximum data rates are 433 Mbps in the 5 GHz band and 200 Mbps in the 2.4 GHz band.
Features
- Aruba 203R Series Unified Remote Access Points can be deployed in either controller-based (ArubaOS) or controllerless (InstantOS) deployment mode.
- The access point is suitable for branch and home offices.
- The integrated Trusted Platform Module (TPM) helps provide secure storage of credentials and keys as well as secure boot features.
- Aruba 203R Series Unified Remote Access Points with integrated wireless intrusion protection offer threat protection and mitigation, and eliminate the need for separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
- This AP enables management of your deployment of battery powered Aruba Beacons.
- Aruba 203R Series Unified Remote Access Points have a built-in Bluetooth low-energy (BLE) radio, and can deliver location-based services for BLE-enabled mobile devices.
- The 203R AP supports up to 867 Mbps in the 5 GHz band (with 2SS/VHT80 clients) or up to 400 Mbps in the 2.4 GHz band (with 2SS/VHT40 clients). In 1x1 dual-radio mode, these maximum speeds are up to 433 Mbps and 200 Mbps respectively.
- Aruba 203R Series Unified Remote Access Points are software-configurable to operate in either 1x1 dual-radio mode, or 2x2 single-radio dual-band mode.
Other Details
Aruba limited lifetime warrantyProduct Videos
Specifications
| Spec | Description |
|---|---|
| QuickSpecs (HTML) | https://www.hpe.com/h20195/v2/gethtml.aspx?docname=a00000838enw |
| QuickSpecs (PDF) | https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00000838enw |
| QuickSpecs Date | 10/01/2018 12:00:00 AM; 10/01/2020 05:00:00 AM |
| Quickspec Date | 6 |
| Differentiator | Flex-radio 802.11ac 2x2 unified remote access point with internal antennas. This SKU is for rest-of-world countries not given a specific regulatory domain. |
| Connectivity, standard | IEEE 802.11a/b/g/n/ac |
| Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/E UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 |
| Certifications | CB Scheme Safety, cTUVus Wi-Fi Alliance (WFA) certified IEEE 802.11a/b/g/n/ac |
| Power consumption | 8.2W maximum (worst-case), 5.0W in idle mode (worst-case). |
| Input voltage | 90 – 265 VAC, 47 – 63Hz |
| Weight | 0.7 lb; 320 g |
| Mounting | Supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product labels. The cover can be used to support wall mounted deployments. |
| Ports | (1) 10/100/1000BASE-T RJ-45 (uplink) (2) 10/100/1000BASE-T RJ-45 (local) |
| Minimum dimensions ( H x W x D) | 95 x 155 x 50 mm |
| Wi-Fi antenna | Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.9 dBi in 2.4 GHz and 2.9 dBi in 5 GHz. Built-in antennas are optimized for vertical orientation of the AP. Combining the patterns of ea... |
| Product dimensions (H x W x D) | 3.7 x 6.1 x 2.0 in |
