Product Description
Overview

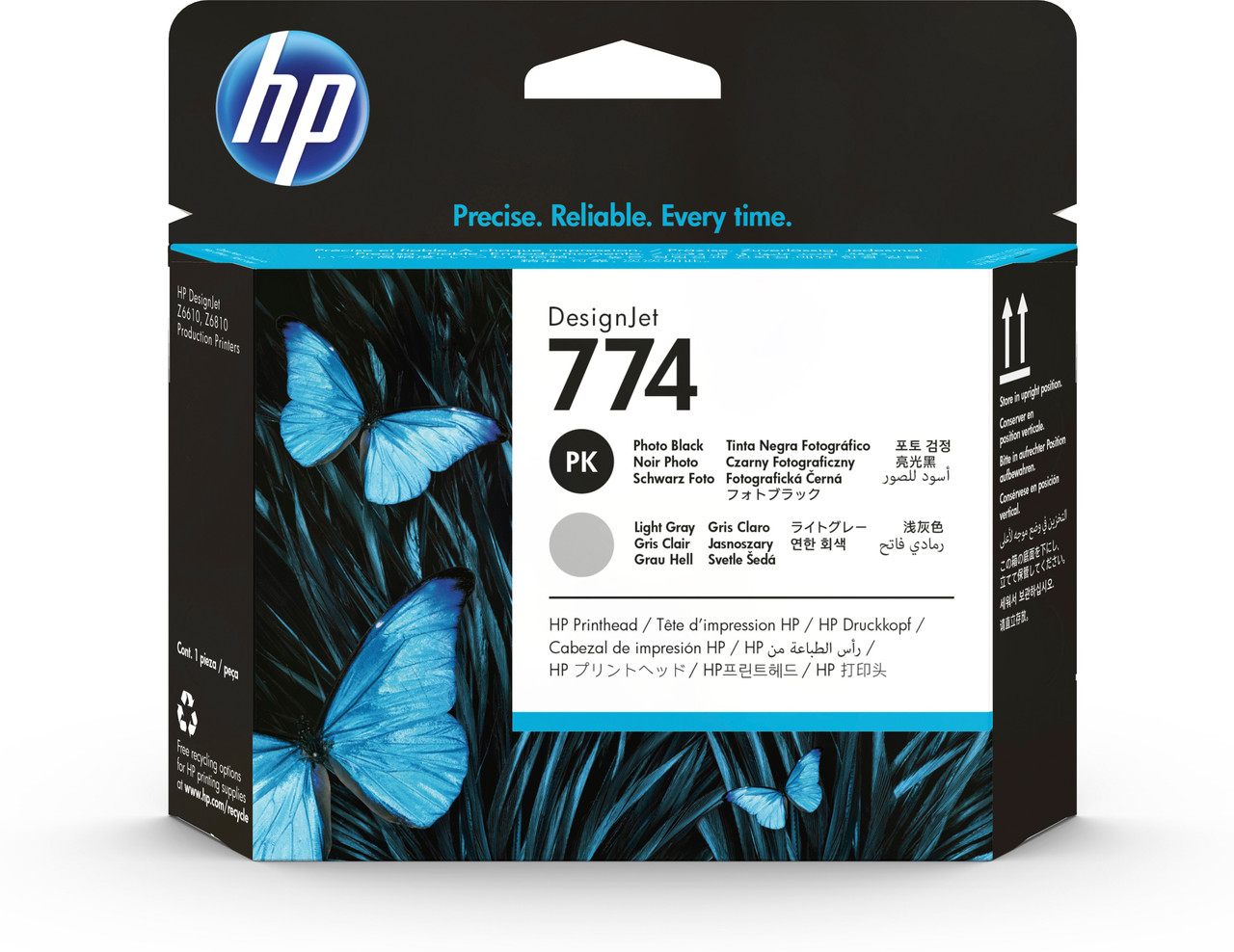

- HP 774 Printhead, photo black/light gray
- Produce sharp, high-impact output from line drawings to posters. Help maximize the life of your HP printheads by using Original HP Vivid Photo Inks. Enjoy simple, convenient printing and get day-one image quality with user-replaceable printheads.
- Produce sharp, high-impact output from line drawings to posters. Help maximize the life of your HP printheads by using Original HP Vivid Photo Inks. Enjoy simple, convenient printing and get day-one image quality with user-replaceable printheads.
Features
- Take advantage of free, convenient Original HP 774 DesignJet Printhead recycling.[1]
- Built-in intelligent technology maximizes printhead usage life; as needed servicing reduces ink consumption.
- Save time—replacing a printhead is quick and easy.
- Receive alerts when printheads need to be replaced.
- Reduce downtime and keep day-one image quality with user-replaceable HP printheads.
- At the ready—you can maximize the life of HP printheads to help reduce downtime using Original HP inks.
- Reliable, hassle-free performance for fast printing of a range of graphics and technical applications.
- Achieve high impact and clear readability from line drawings to posters, with optimized printheads.
Product Videos
Specifications
| Spec | Description |
|---|---|
| UNSPSC code | 44103110 |
| Country of origin | Made in Singapore |
| Copyright notice | The product could differ from the images shown. © 2014 Hewlett-Packard Development Company, L.P. The Information contained herein is subject to change without notice. Warranties for HP products and services are set out in the express warranty stat... |
| Image legal disclaimer | Product image may differ from actual product |
| Operating humidity range | 40 to 55% RH |
| Non-Operating Humidity Range | 8 to 90% RH |
| Operating temperature range | 20 to 25°C; 68 to 77°F |
| Storage temperature range | -40 to 60°C; -40 to 140°F |
| Average printhead life | 3 L |
| Manufacturer Warranty | 90 Days (Return to HP - Unit Replacement) |
| Warranty | Each HP ink cartridge, printhead, and related supply is warranted to be free from defects in materials and workmanship during the period of the warranty. This warranty pertains to any HP ink cartridge or printhead when used in its designated HP or... |
| Print Technology | Ink |
| Ink types | Pigment-based |
| Color(s) of printing supplies | Photo black, light gray |
| Print head nozzles | 2112 |
| Ink drop | 4 pl |
| Printhead swath (inch) | 0.875 in |
| Selectability | 774 |
| Package count | 1 |
| Cartridge Colors | Light Gray; Photo Black |
| Supply type | Printheads |
| Print Resolution Technologies | TIJ 4.0 |
| Pallet dimensions | 40 x 48 x 51.9 in |
| Minimum dimensions (W x D x H) | 1.1 x 5.63 x 5.2 in; 28 x 143 x 132 mm |
| Case or master carton dimensions (W x D x H) | 366 x 297 x 150 mm |
| Case dimensions (case or master carton) | 14.41 x 11.69 x 5.91 in |
| Package dimensions (W x D x H) | 28 x 143 x 132 mm; 1.1 x 5.63 x 5.2 in |
| Pallet dimensions (W x D x H) | 1016 x 1219.2 x 1318.26 mm |
| Pallet barcode | 20192018596942 |
| UPC number | 192018596948 |
| Smaller master carton barcode | 10192018596945 |
| What's in the box | Printhead |
| Case weight (case or master carton, imperial) | 6.28 lb |
| Case weight (case or master carton) | 2.85 kg |
| Weight | 0.08 kg; 0.17 lb |
| Package weight | 0.1 kg; 0.23 lb |
| Pallet weight | 241 kg; 531.31 lb |
| Quantity per pallet | 1920 |
| Product count per unit | 1 |
| Count of carton in pallet | 80 |
| Count of cartons per pallet layer | 10 |
| Count of layers in pallet | 8 |
| Case or master carton quantity | 24 |
| Compatibility | HP DesignJet Z6810 Production Printer series, HP DesignJet Z6610 Production Printer |
| Product long name specifications | HP 774 Photo Black/Light Gray DesignJet Printhead |
| Product subgroup | Printheads |
