Product Description
Overview

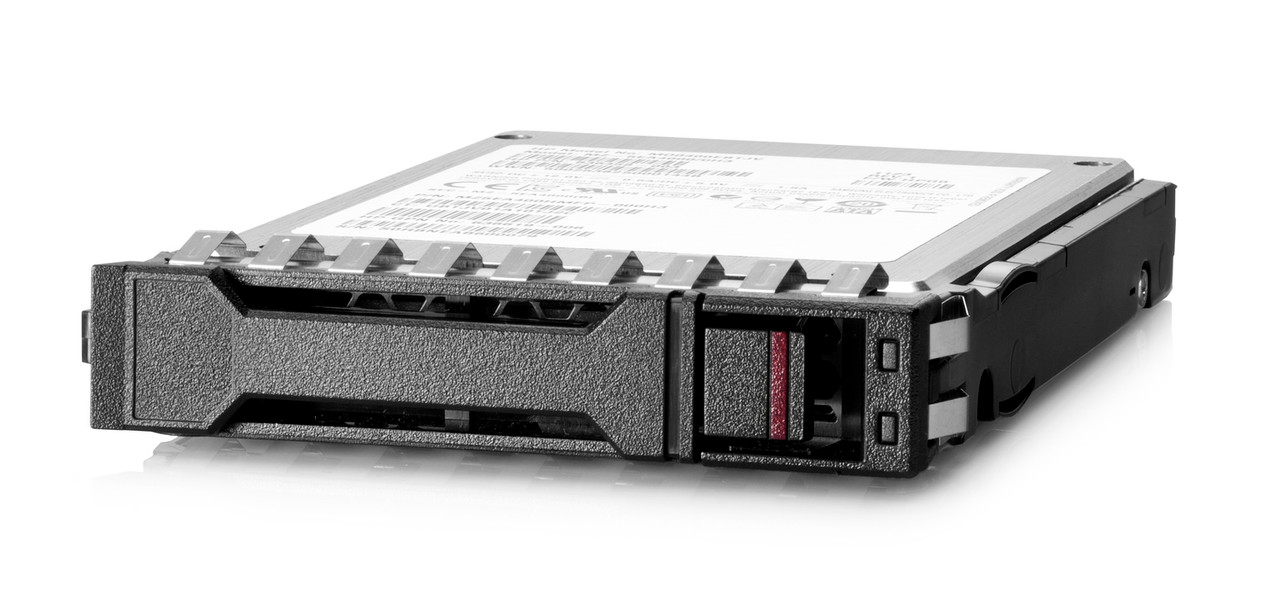

- Do you need to accelerate the performance of your mixed use applications? HPE NVMe Mainstream Performance Mixed Use U.3 Static Solid State Drives are well suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data intensive applications. NVMe MU SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe Mainstream Performance MU SSDs are advanced data center drives customized for greater performance and endurance in a cost-effective design. It is designed to utilize the high bandwidth of PCIe Gen4 in select servers for mixed use workloads requiring outstanding IOPS per watt and cost per IOPS as an upgrade from SATA SSDs.
Features
- HPE NVMe Mainstream Performance Mixed Use U.3 Static Solid State Drives deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.
- Hewlett Packard Enterprise SSDs are backed by up to 3.35 million hours of testing and qualification, ensuring reliable, high performing drives. [1]
- HPE NVMe Mainstream Performance Mixed Use U.3 Static Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications and virtualization.
- Achieve higher IOPS to enhance the performance of your data center.
- Maintain data accuracy with full data-path error detection.
- Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
Product Videos
Specifications
| Spec | Description |
|---|---|
| QuickSpecs | ##QUICKSPECS## |
| QuickSpecs date | ##QUICKSPECS## |
| Quickspec date | ##QUICKSPECS## |
| Weight | 1.1 lb; 0.5 kg |
| Product dimensions (metric) | 21.92 x 22.86 x 14.61 cm |
| Product dimensions (imperial) | 8.63 x 9 x 5.75 in |
| Height | 15 mm |
| Lifetime writes | 35,040 |
| Endurance DWPD (Drive Writes Per Day) | 3 |
| Power (Watts) | 15.28 |
| Plug type | Hot Pluggable |
| Platform supported | HPE Mainstream Compute Platforms |
| Read IOPS | Random Read IOPS (4KiB, Q=16)= 211,802 MAX Random Read IOPS (4KiB)= 950,000@Q256 |
| Write IOPS | Random Write IOPS (4KiB, Q=16) = 394,003 MAX Random Write IOPS (4KiB)= 408,171@16 |
| Warranty | HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached t... |
| UNSPSC code | 43202005 |
| Facet Carrier type | Basic Carrier |
| Facet Drive form factor | Small Form Factor (SFF) 2.5in |
| Facet Platform supported | HPE Mainstream Compute Platforms |
| Facet Capacity | 6.4 TB |
| Facet Category (facet) | Drives and Storage |
| Facet Subcategory | Server Solid State Drives |
| Facet Interface | NVMe |
| Facet Form factor | Small Form Factor (SFF) 2.5in |
| Facet Endurance | Mixed Use (MU) |
| Facet Platform supported (faceturl) | hpe-mainstream-compute-platforms |
| Facet Carrier type (faceturl) | basic-carrier |
| Facet Endurance (faceturl) | mixed-use-mu |
| Facet Drive form factor (faceturl) | small-form-factor-sff-2dot5in |
| Facet Capacity (faceturl) | 6dot4-tb |
| Facet Interface (faceturl) | nvme |
| Facet Category (faceturl) | drives-and-storage |
| Facet Subcategory (faceturl) | server-solid-state-drives |
