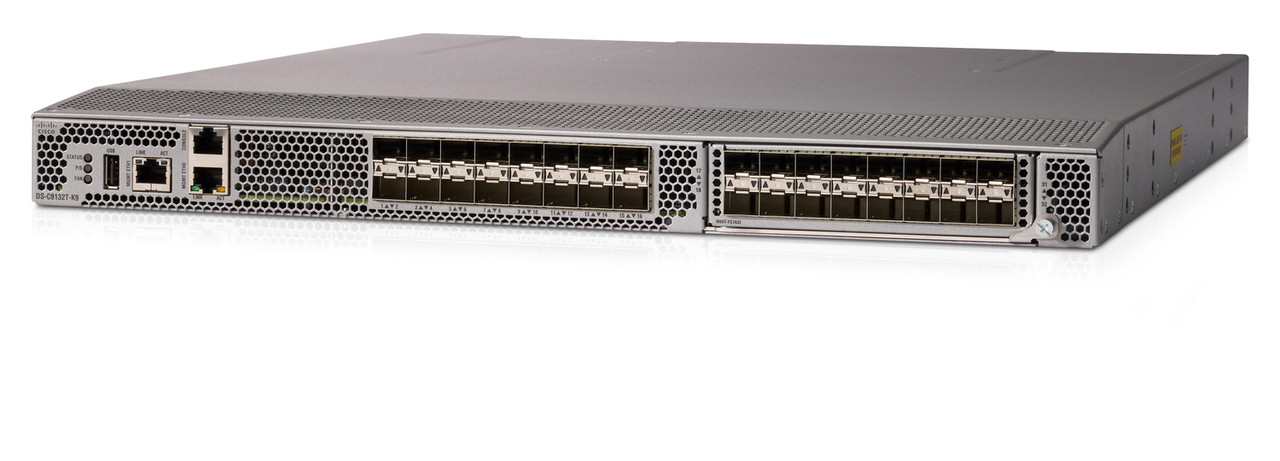

Q9D35B - HPE SN6610C 32Gb 32/8 32Gb Short Wave SFP+ Fibre Channel v2 Switch

Product Description

Overview

• Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE Storage Fibre Channel Switch C-series SN6610C delivers 32Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-series SN6610C scales from 8 to 32-ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32Gbps performance in the future.

Features

• Lower initial investment and power consumption for entry-level configurations of up to 8 ports compared to a fully loaded 32-port switch.
• Delivers increased performance with an aggregate bandwidth of 1024Gbps for growing and dynamic workloads.
• Delivers the same outstanding availability and reliability as previous generation HPE Storage Fibre Channel Switch C-series SN6610C by providing optional redundancy on all major components such as power supplies and fans.
• Provides visibility into each virtual machine logged into the fabric through HBAs capable of priority tagging the Virtual Machine Identifier (VMID) on every FC frame.
• On-board hardware that protects the entire system from malicious attacks by limiting access to critical components such as the bootloader, system image loader and Joint Test Action Group (JTAG) interface.
• The HPE Storage Fibre Channel Switch C-series SN6610C  provides an option to deploy as few as eight 32Gbps Fibre Channel (FC) ports which can grow from 8 ports to 16 ports, and thereafter with a port expansion module. Expanding up to a maximum of 32 ports.
• The HPE Storage Fibre Channel Switch C-series SN6610C supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.
• The VSAN technology provides a cost-effective way to consolidate resources while providing high resiliency to potential fabric disruptions.
• Provides powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.
• The HPE Storage Fibre Channel Switch C-series SN6610C provides intelligent diagnostics tools such as inter-switch link diagnostics, read diagnostic parameters, protocol decoding, network analysis tools, and others for improved reliability, faster problem resolution, and reduced service costs.
• Consolidate separate physical SAN fabrics into one large fabric for ease of management and reduced total cost of ownership.
• HPE Storage Fibre Channel Switch C-series SN6610C provides consistent 32Gbps low-latency performance across every FC port on the switch.
• Cisco Data Center Network Manager (Essentials Edition) software, included with switch, provides a centralized management tool with task-based wizards. Additional advanced features are available with the DCNM / Cisco Nexuas Dashboard Fabric Controller (NDFC) licensed version, sold separately.
• Starting NX-OS 9.2(1), DCNM is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC).
• HPE C-series SAN Insights (Cisco SAN Analytics) delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays.
• Configurable with 16Gb FC SFP+ or 32Gb FC SFP+ optics to accommodate your budget while being fully prepared for tomorrow.
