Product Description

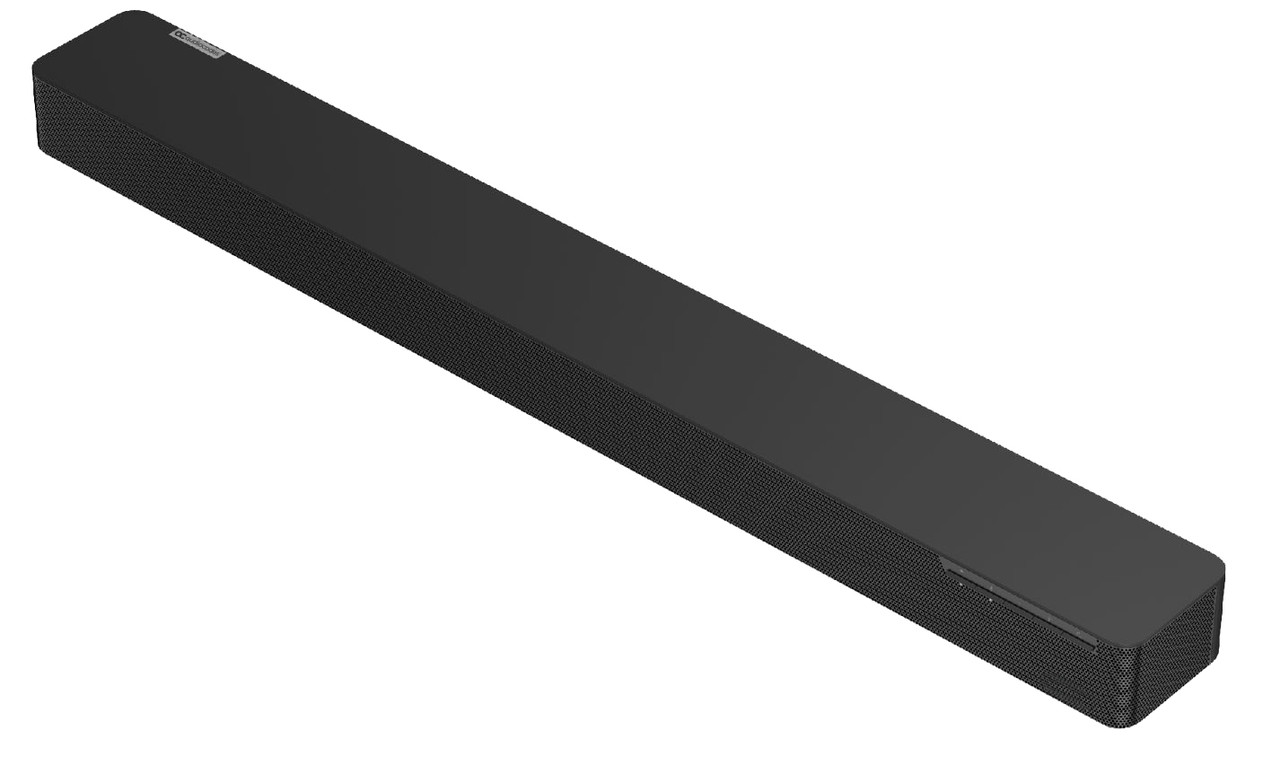

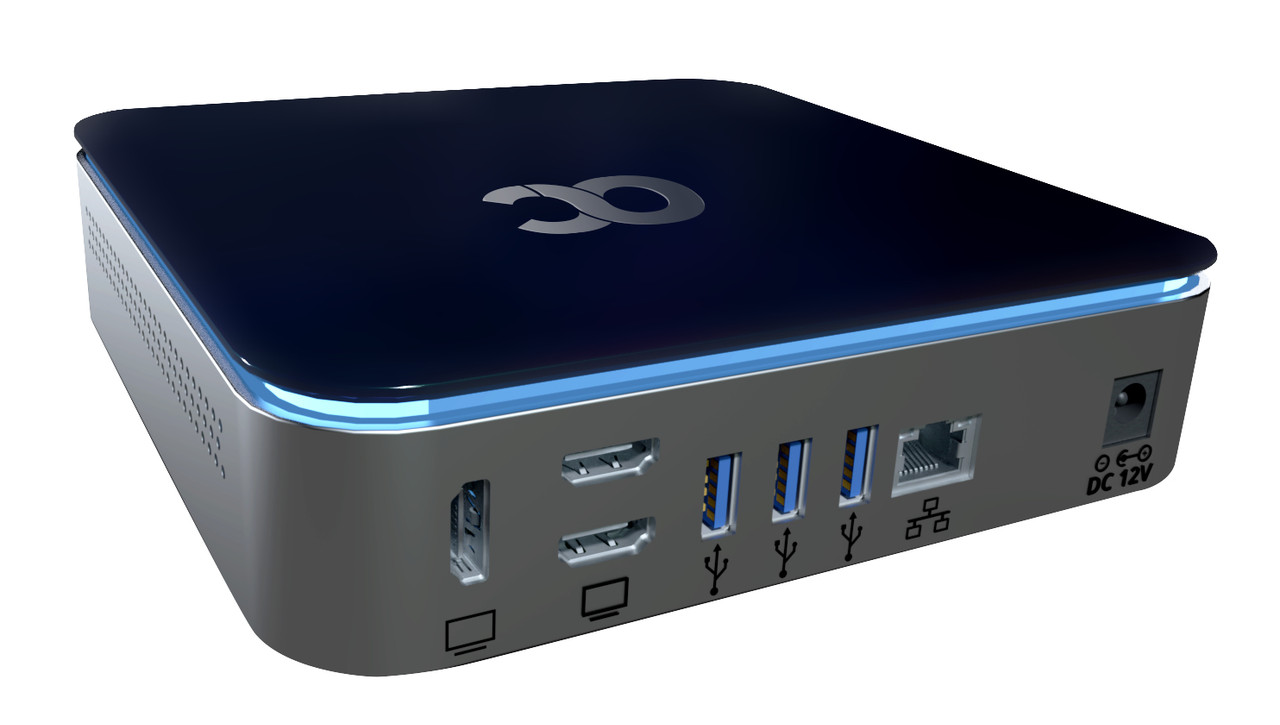

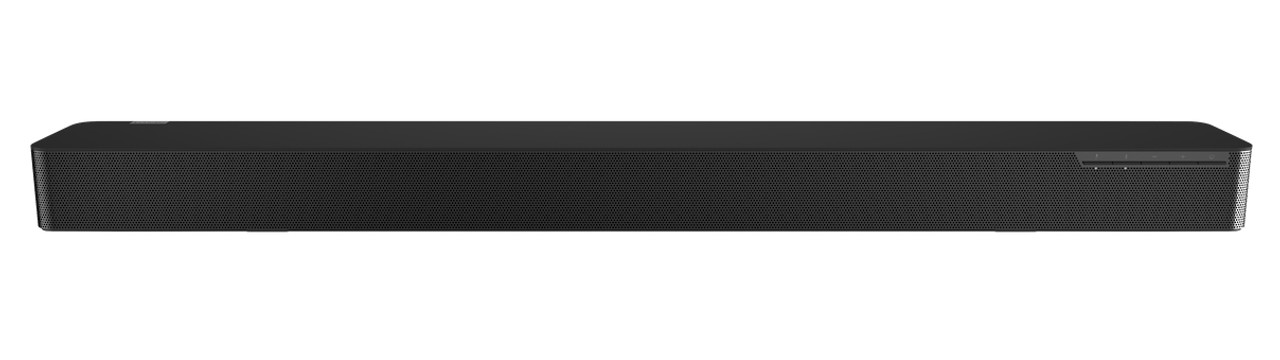

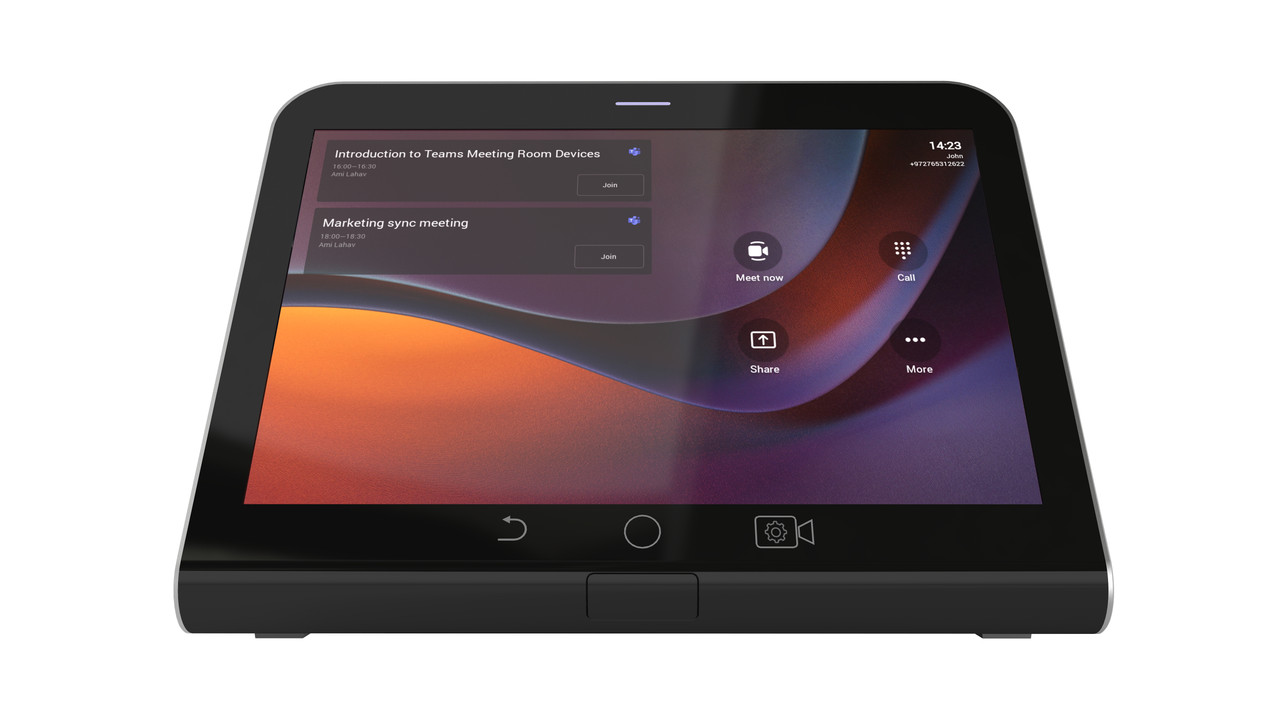

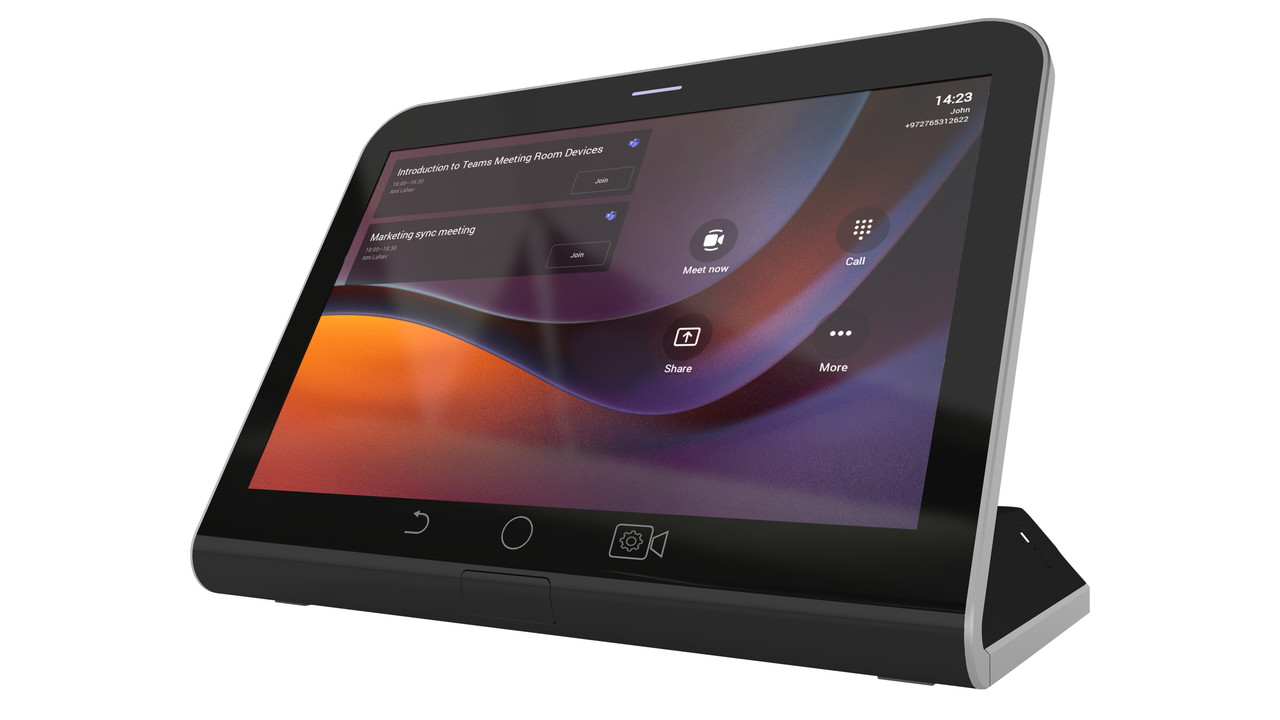

The RXV200-B40 bundle takes your medium to large meeting space to a complete meeting room with compute device (RXV200), camera (RXVCam50M), meeting room controller (RX-PAD), and sound bar with satellite speakers (RX40).Modern meeting devices must be adaptable enough to accommodate any room size or shape, while minimizing the number of table-mounted accessories and devices apart from a microphone and a meeting room controller like the AudioCodes RX-PAD. The RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room, thereby facilitating the adoption of new and advanced devices to keep up with latest technology trends without excessive expenditure. Together with the RX-PAD meeting controller, it provides an easy meeting room experience that significantly boosts productivity.
Features
- Group video conferencing system 16 person(s)
- Bluetooth
- 4K Ultra HD 3840 x 2160 pixels
- Built-in speaker(s) 250 - 20000 Hz
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi VLAN support
- Single camera 8.28 MP 10x CCD 1/2.5"
- Power source type: DC
- Black
Product Videos
Specifications
| Spec | Description |
|---|---|
| 3D NR (Noise Reduction) | Yes |
| Aspect ratio | 16:9 |
| Automatic gain control | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Built-in display | Yes |
| Built-in speaker(s) | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Camera dimensions (WxDxH) | 220 x 93.8 x 56.5mm |
| Camera type | Single camera |
| Computer system type | Mini PC |
| Current | 3A |
| DC input voltage | 12V |
| Diagonal field of view | 102° |
| Digital zoom | 10x |
| Display diagonal | 20.3cm |
| Display resolution | 1280 x 800pixels |
| Echo cancellation | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000Mbit/s |
| Focal length range | 2.26mm |
| Frequency range | 250 - 20000Hz |
| HD type | 4K Ultra HD |
| Horizontal field of view | 100° |
| Image sensor size | 1/2.5" |
| Interface module dimensions (W x D x H) | 170 x 170 x 41.3mm |
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 2 |
| Interface module HDMI ports quantity | 3 |
| Interface module weight | 750g |
| Maximum video resolution | 3840 x 2160pixels |
| Megapixel (approx.) | 8.28MP |
| Microphone colour | Black |
| Microphone frequency | 300 - 8000Hz |
| Microphone pick-up range | 8m |
| Minimum illumination | 0.1lx |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Noise reduction | Yes |
| Number of cameras | 1 |
| Number of microphones | 2 |
| Number of persons | 16person(s) |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating system installed | Android |
| Operating temperature (T-T) | -10 - 50°C |
| Power source type | DC |
| Processor family | Qualcomm Snapdragon |
| Processor model | QCS8250 |
| Product colour | Black |
| Product type | Group video conferencing system |
| PTZ control | Yes |
| Quality of Service (QoS) support | Yes |
| Resolution at capture speed | 640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1920x1080@25fps, 1920x1080@30fps, 3840x2160@30fps |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SRTP, TLS |
| Sensor type | CCD |
| Speaker dimensions (WxDxH) | 800 x 90 x 56mm |
| Speaker power | 40W |
| Speaker weight | 3.6kg |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -10 - 60°C |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported network protocols | TCP/IP (IPv4) |
| Touchscreen | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Vertical field of view | 64° |
| VLAN support | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Zoom capability | Yes |
