Product Description
Overview

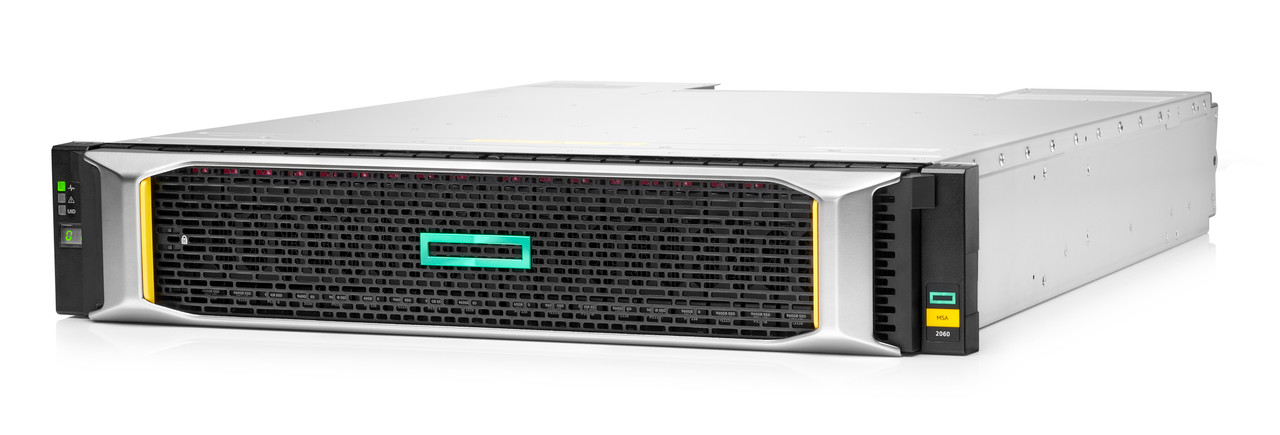

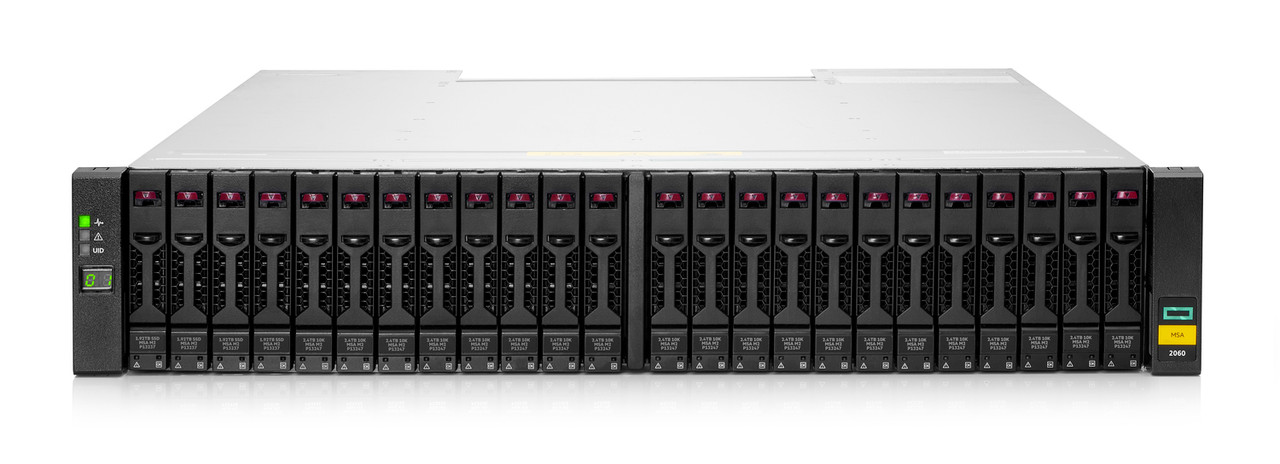

- Is your company looking for easy to use, affordable, high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.
Features
- The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.
- Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
- The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
- Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.
- The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.
- Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution.
- The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).
- HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.
- The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
Product Videos
Specifications
| Spec | Description |
|---|---|
| QuickSpecs (HTML) | https://www.hpe.com/psnow/doc/a00094629enw.html?jumpid=in_pdp-psnow-qs |
| QuickSpecs | ##QUICKSPECS## |
| QuickSpecs (PDF) | https://www.hpe.com/psnow/doc/a00094629enw.pdf?jumpid=in_pdp-psnow-qs |
| QuickSpecs date | 08/07/2023 12:00:00 AM; ##QUICKSPECS##; 10/31/2028 12:00:00 AM |
| Quickspec date | ##QUICKSPECS##; 13 |
| Warranty | Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives and options carry their own warranty. |
| Product dimensions (imperial) | 3.5 x 17.5 x 20.0 in |
| Form factor | 2U |
| Storage mirroring support | No |
| Storage controller | 2 per array, 4-ports each (8-ports total) |
| Systems Insight Manager support | No |
| Storage expansion options | 24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9) |
| Drive description | Up to 12 LFF HDD and/or SSD or up to 24 SFF HDD and/or SSD per array, depending on model |
| Capacity | Up to 1,843.2 TB (all SFF) and 2.4 PB (all LFF); depending on model, depending on drive mix |
| SAN backup support | Yes |
| Clustering support | Yes |
| Energy efficiency | Energy Star Compliant |
| Weight | 11 lb; 5 kg |
| Product dimensions (metric) | 8.9 x 44.5 x 50.8 cm |
| Host interface | 16 Gb Fibre Channel, 10/25GbE iSCSI, 10GBase-T iSCSI, or 12 Gb SAS; depending on model |
| Compatible operating systems | Windows Server 2022; Windows Server 2019; Windows Server 2016; VMWare vSphere 6.7; Red Hat Linux 8; SuSE SLES 15 |
| UNSPSC code | 43201802 |
| Facet Product type | MSA Storage |
| Facet Category (facet) | Disk Storage Systems |
| Facet Subcategory | MSA Storage |
| Facet Form factor | 2U |
| Facet Form factor (faceturl) | 2u |
| Facet Subcategory (faceturl) | msa-storage |
| Facet Category (faceturl) | disk-storage-systems |
| Facet Product type (faceturl) | msa-storage |
