Product Description

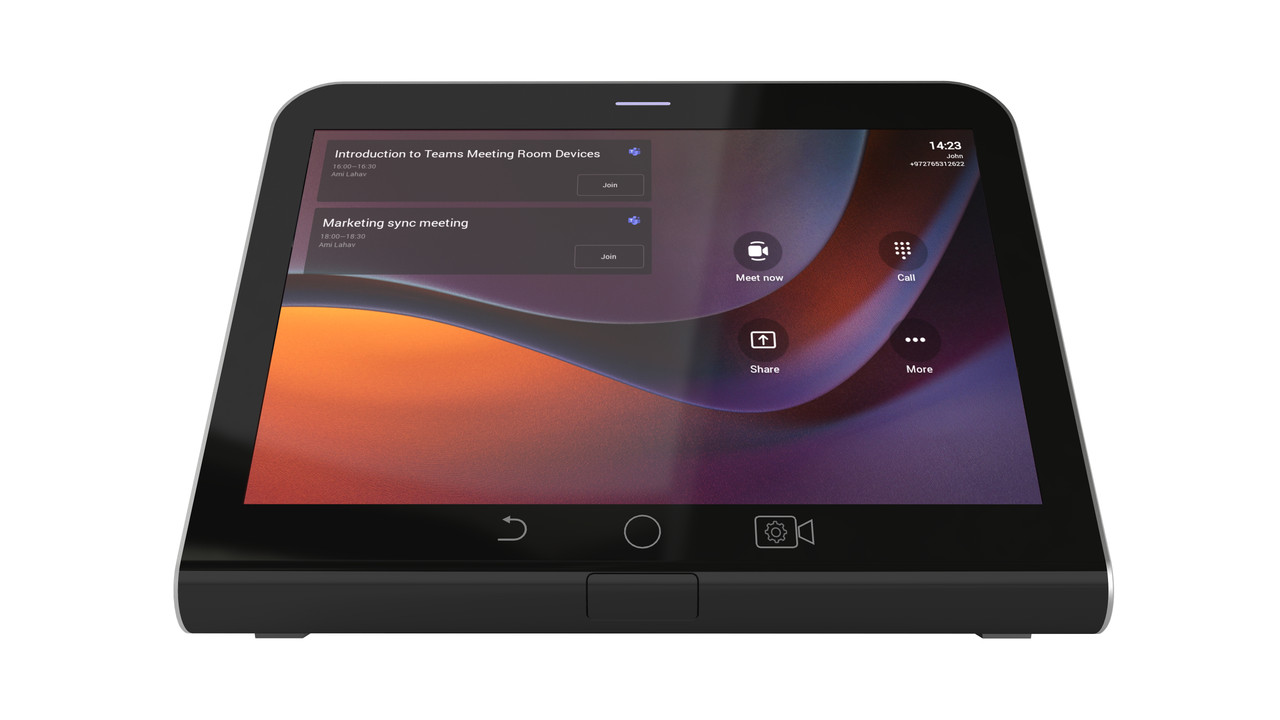

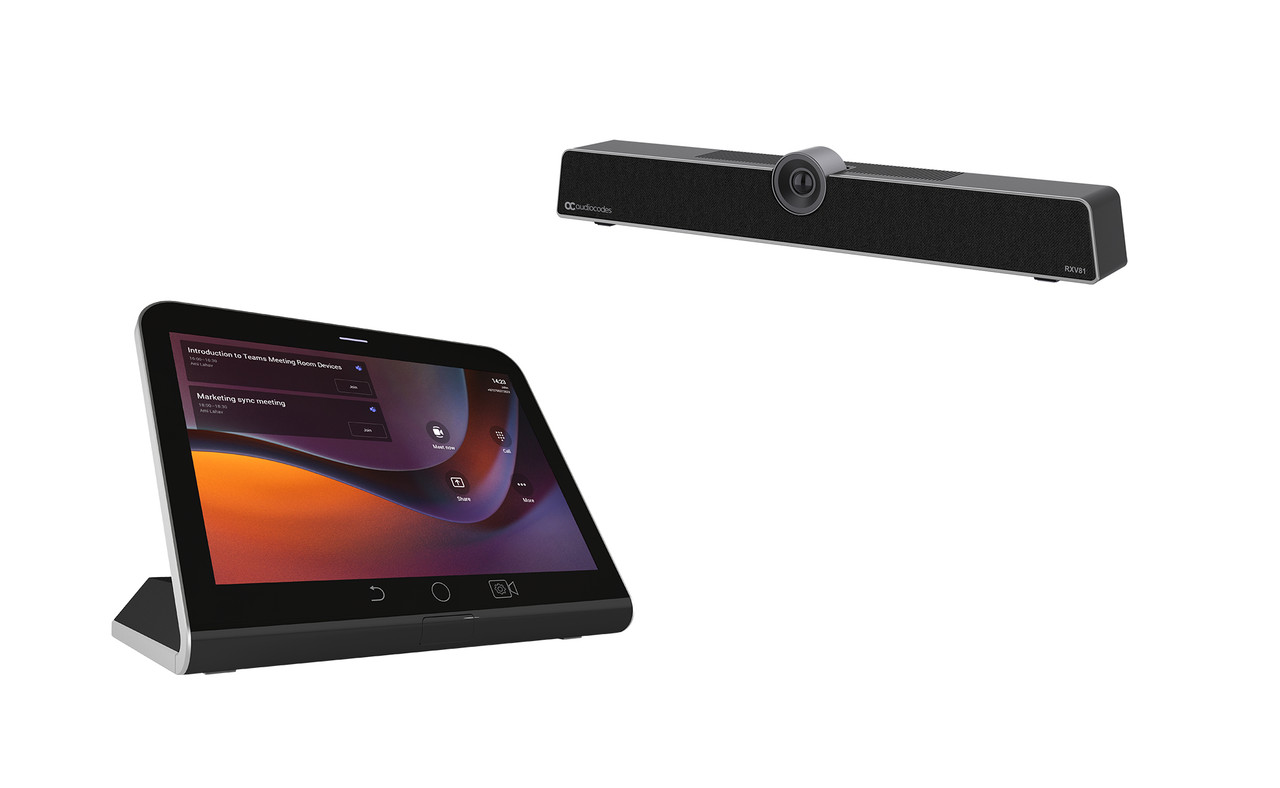

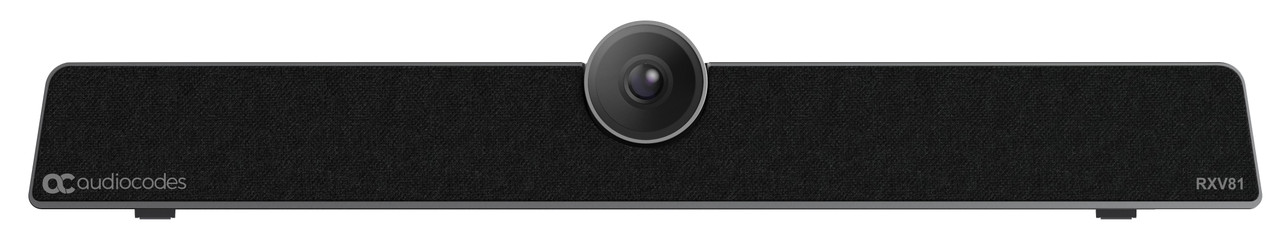

The AudioCodes RXV81 is a standalone Microsoft Teams Rooms on Android™ (MTR) video bar that takes plug-and-play simplicity to another level, resulting in a familiar and exceptionally productive Microsoft Teams meeting experience. When bundled with the RX-PAD as the room's sleek touch controller, the user can easily set up and control meetings in any type of room via a central controller. The RXV81 embedded speakers and 6 mics, as well as Full HD and ePTZ with 5x zoom, provides outstanding image clarity and enhanced voice quality, making every meeting interactive and personable, as remote participants can see and hear everyone in the room, and can also participate in full Teams video and content sharing sessions.
Features
- Group video conferencing system
- Bluetooth
- 4K Ultra HD 3840 x 2160 pixels
- Built-in speaker(s) RMS rated power: 10 W
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi VLAN support
- Single camera 5x
- Power source type: DC
- Black
Product Videos
Specifications
| Spec | Description |
|---|---|
| Audio system full duplex | Yes |
| AUX in (speaker) | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Built-in display | Yes |
| Built-in speaker(s) | Yes |
| Camera type | Single camera |
| Clear Voice technology | Yes |
| Current | 3A |
| DC input voltage | 12V |
| Diagonal field of view | 120° |
| Digital zoom | 5x |
| Display diagonal | 20.3cm |
| Display resolution | 1280 x 800pixels |
| Echo cancellation | Yes |
| Ethernet LAN | Yes |

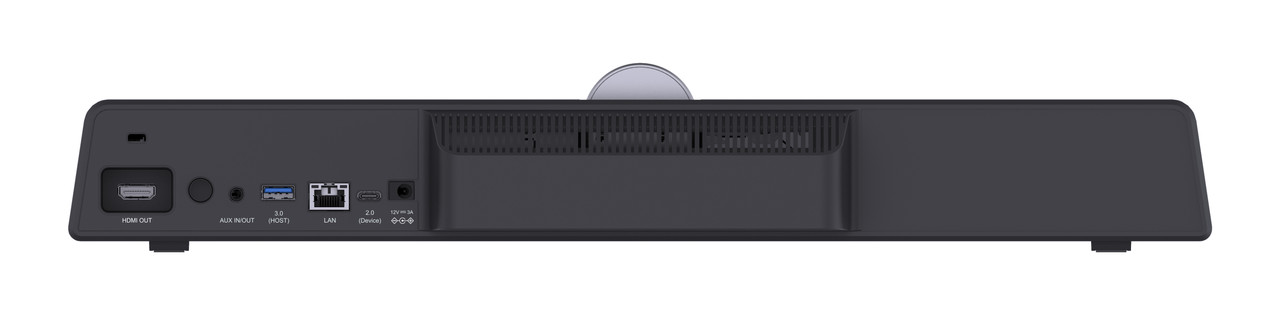

| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000Mbit/s |
| HD type | 4K Ultra HD |
| HDMI output ports quantity | 1 |
| HDMI ports quantity | 1 |
| Horizontal field of view | 110° |
| Maximum video resolution | 3840 x 2160pixels |
| Microphone pick-up range | 4.5m |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Noise reduction | Yes |
| Number of microphone arrays | 6 |
| Number of speakers | 1 |
| Operating system installed | Android 9 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power source type | DC |
| Product colour | Black |
| Product type | Group video conferencing system |
| PTZ control | Yes |
| Quality of Service (QoS) support | Yes |
| Remote control dimensions (W x H x D) | 212 x 128.4 x 152.8mm |
| Remote control interface | Bluetooth |
| Remote control weight | 908g |
| Resolution at capture speed | 1920x1080@30fps |
| RMS rated power | 10W |
| Security algorithms | 256-bit AES, SRTP, TLS |
| Supported network protocols | TCP/IP (IPv4) |
| Tilt angle range | -15 - 15° |
| Touchscreen | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Vertical field of view | 75° |
| VLAN support | Yes |
| Wi-Fi | Yes |
| Zoom capability | Yes |
