Product Description

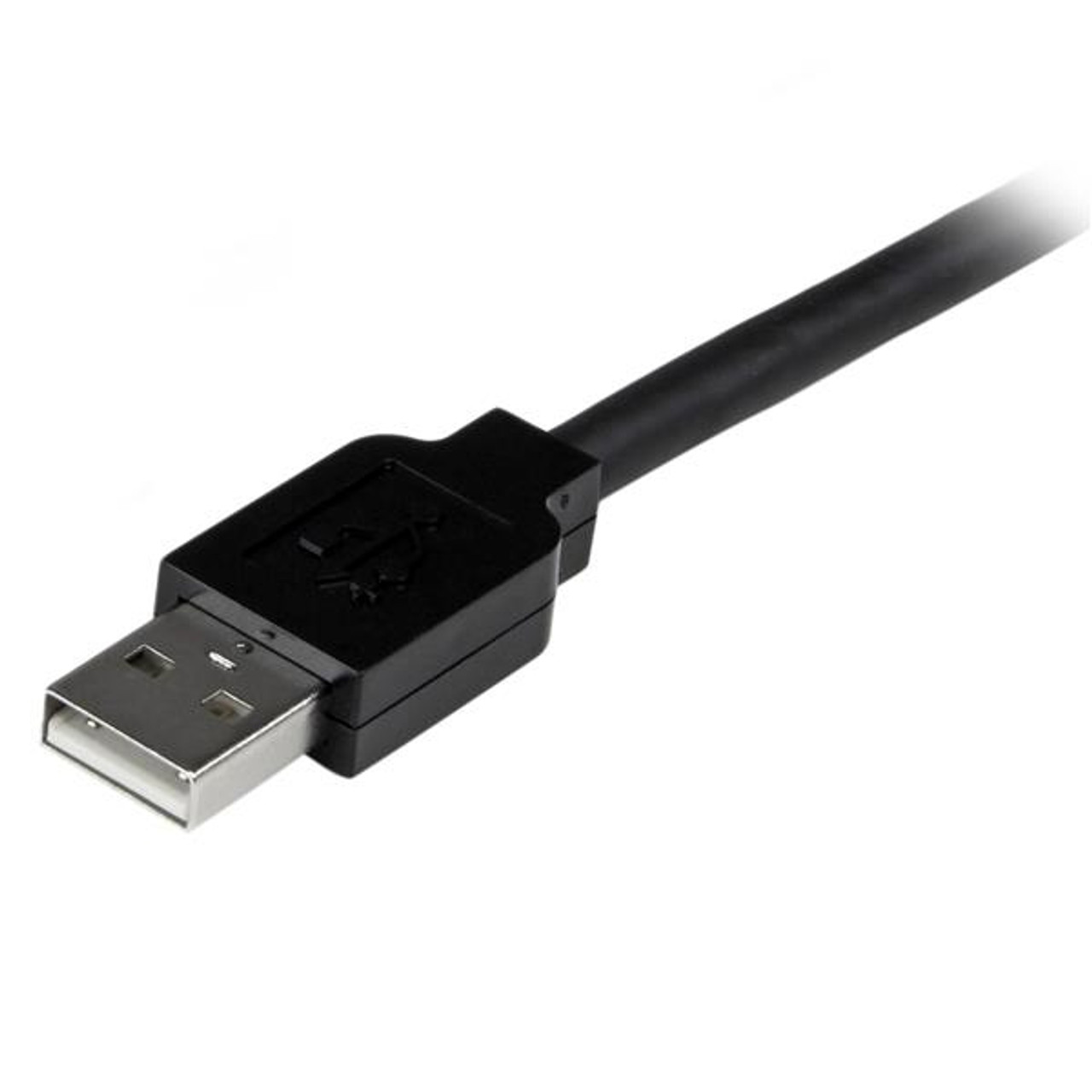

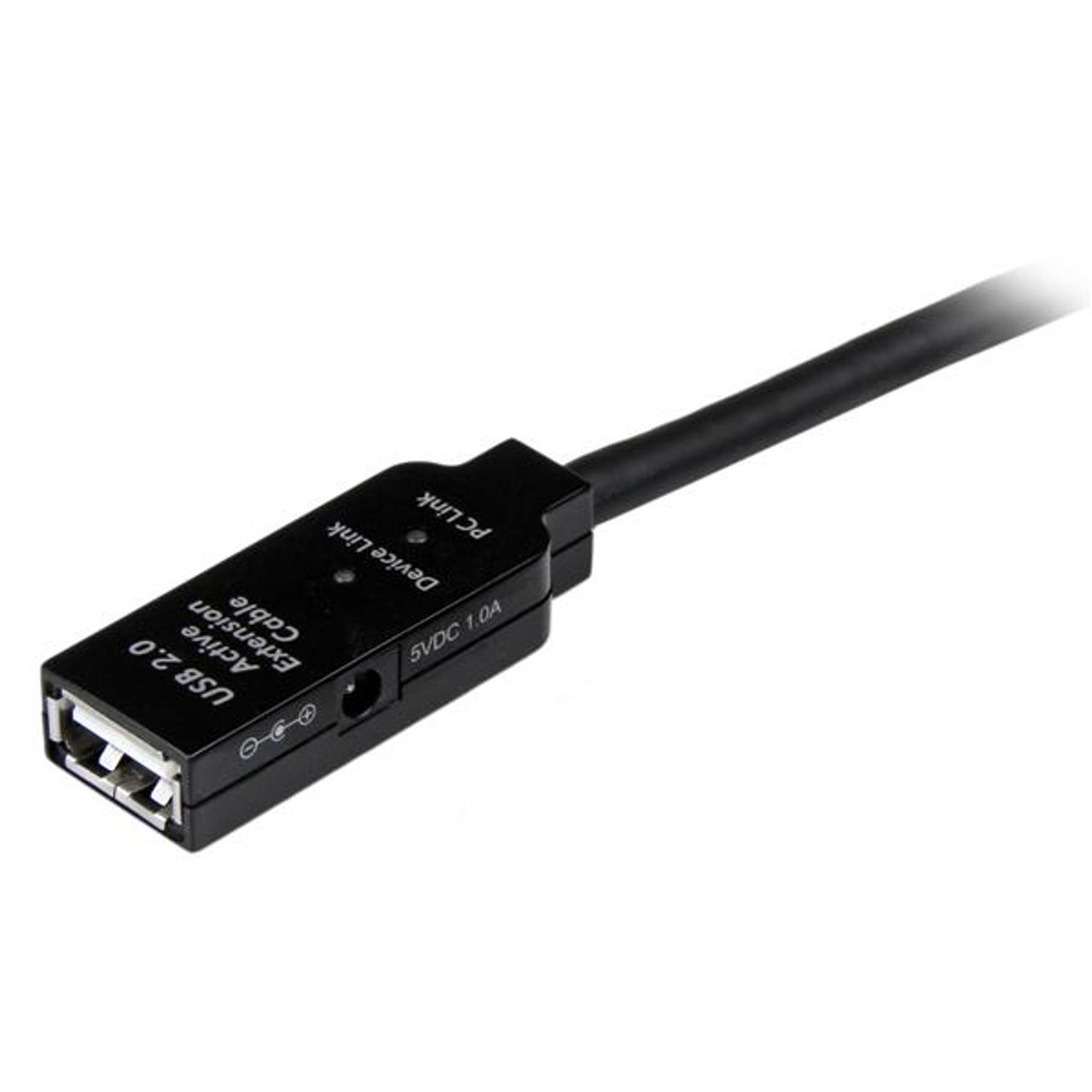

The USB2AAEXT5M 5m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 5-meters (15-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.
If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.
The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
- No USB signal loss, even at a distance of up to 15 feet (5 meters)
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together for reaching connection distances of up to 20-meters between your USB 2.0 devices
Features
- 5 m
- USB A Straight Male
- USB A Straight Female
- USB 2.0 480 Mbit/s
- Black
- 1 pc(s)
Product Videos
Specifications
| Spec | Description |
|---|---|
| AWG wire size | 24 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 5m |
| Cable shielding | Aluminum mylar foil |
| Certification | CE, FCC |
| Connector 1 | USB A |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Connector gender | Male/Female |
| Harmonized System (HS) code | 84733080 |
| Maximum data transfer rate | 480Mbit/s |
| Output current (max) | 1A |
| Output voltage | 5V |
| Package depth | 215mm |
| Package height | 58mm |
| Package weight | 472g |
| Package width | 226mm |
| Plug and Play | Yes |
| Product colour | Black |
| Quantity per pack | 1pc(s) |
| Reversible connectors | No |
| Sustainability certificates | RoHS |
| USB version | USB 2.0 |
| Weight | 286g |
