Product Description
Overview
- Large-format printing for engineering, architectural, graphic arts and photo professionals.
- Professional photo prints, fast and simple. More quality with fewer inks.
- Deliver photo-quality prints 2.5 times faster[4] without losing quality. Cut post-processing time up to 20% with the first printer to include an integrated vertical trimmer.[3] Simplify your workflow with new tools in the HP Applications Center.[5]
Features
- Get superior gloss uniformity by upgrading your printer to include HP Gloss Enhancer.[2]
- Achieve expanded gamut with RGB HP Vivid Photo Inks and the embedded spectrophotometer.[1]
- No need for light inks using new high-definition HP printheads with dual drop technology.
- Impress the most demanding customers with smooth transitions and sharp details thanks to HP Pixel Control.
- Enjoy one-click printing that also helps reduce media waste using HP Click printing software.[7]
- Get remote visibility and control to better manage your print production environment with HP PrintOS.
- No disruption to your workflow, keep using your current RIPs, validated with HP RIP certification program.[6]
- Easily design applications from posters to banners and canvas with the HP Applications Center.[5]
- Spend less time on media changes and adjustments with dual roll support and automatic roll switching.[3]
- Print up to 2.5 times faster[4] without losing quality, with 2400 nozzle-per-inch high-definition printheads.
- Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer.[3]
Product Videos
Specifications
| Spec | Description |
|---|---|
| Network ready | Standard |
| Security features | HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5... |
| Mobile printing capability | Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android. |
| Connectivity, standard | Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab); Hi-Speed USB 2.0 certified interface for direct printing from USB flash drive |
| Finished output handling | Roll feed, rear sheet feed, media output bin, automatic horizontal cutter |
| UNSPSC code | 43212104 |
| Product logos | Adobe PostScript 3; Adobe PDF Print Engine 4; ENERGY STAR; EPEAT; Gold IPv6 Ready; HP DreamColor Technologies; HP Pixel Control; i1 Color Technology; Mac; PANTONE* Digital Color; Windows 10 Compatible |
| Image legal disclaimer | Product image may differ from actual product |
| Copyright notice | The product could differ from the images shown. © 2014 Hewlett-Packard Development Company, L.P. The Information contained herein is subject to change without notice. Warranties for HP products and services are set out in the express warranty stat... |
| Technology logo, print 1 | Publication logos/win 10 tom apj.JPG |
| Technology logo, print 2 | AHID/2f8f66942d9deaefadcb1b41e21cb94f105050b2 |
| Technology logo, print 5 | Publication logos/ipv 6 tom apj.JPG |
| Technology logo, print 6 | AHID/b504e7ab8574fb23f7819bf5367141da989eb4bc |
| Technology logo, print 7 | AHID/dd10df59ca167ea78eeef7e5b2e698a795b131d7 |
| Ink types | Pigment-based |
| Number of print cartridges | 9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray), optional gloss enhancer |
| Print heads | 5 universal printheads (valid for all colors) |
| Print cartridge volume delivered | HP 746 Ink Cartridge: cyan, magenta, chromatic red, yellow, matte black, photo black (300 ml); HP 747 Ink Cartridge: chromatic green, chromatic blue, gray (300 ml) |
| Print Technology | Ink |
| Ink drop | 7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG) |
| Color(s) of printing supplies | Cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray |
| Print head nozzles | 2112 per color; 21,120 in total |
| Memory | 128 GB (virtual)[9] |
| Power consumption | <100 W (printing); <32 W (ready); <6.5 W (sleep); 0.1 W (off) |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max |

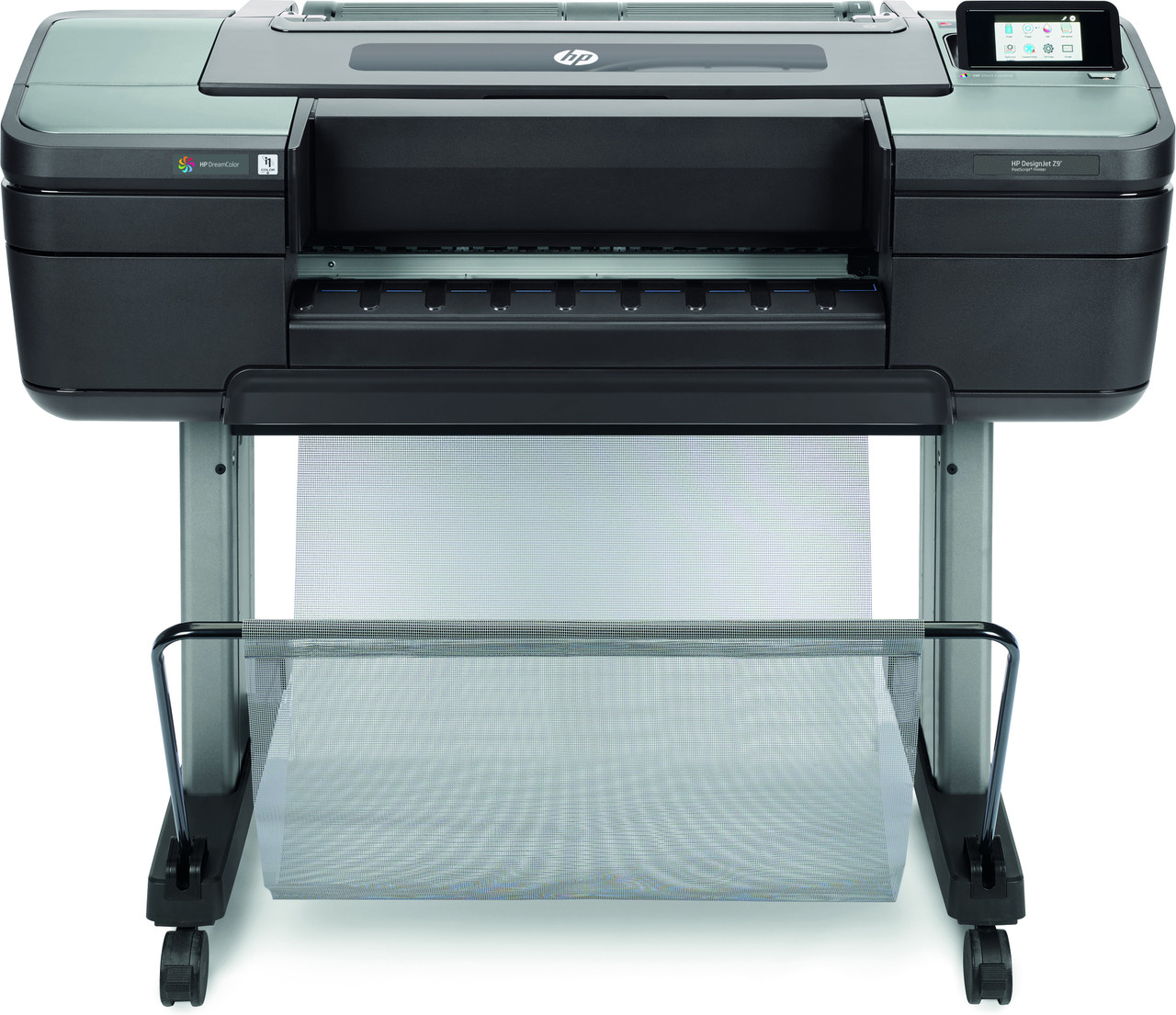

| What's in the box | HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, quick reference guide, setup poster, power cord |
| Photo (product photo, jpg, 70x100) | Printing and Digital Imaging/c7791e_70x100.jpg |
| Media types | Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit |
| Media weight, recommended | 80 to 500 g/m² |
| Media width, maximum | 610 mm |
| Media sizes, custom | 210 x 279 to 610 x 1676 mm |
| Media sizes supported | A4, A3, A2, A1 |
| Media thickness (metric) | Up to 0.8 mm |
| Roll external diameter | 135 mm |
| Roll maximum input | 1 |
| Roll maximum weight | 7.5 kg |
| Media thickness | Up to 31.5 mil |
| Media sizes standard (metric rolls) | 210 to 610-mm wide sheets; 279 to 610-mm rolls |
| Recommended media | Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified)[11] (Recyclable)[12] 1067 mm x 30.5 m (42 in x 100 ft);E4J57A HP Artist Matte Canvas 1118 mm x 15.2 m (44 in x 50 ft);C6569C HP Heavyweight Coated Paper (FSC® certified)[11] (Recyc... |
| Supported Primary Applications | Digital fine art; Exhibition and event graphics; Graphics design; Photos; Point of sale/display; Posters |
| Weight | 72 kg |
| Package weight | 102 kg |
| Sustainable impact specifications | 30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; Compatible with FSC®-certified HP large format printing materials and HP R... |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR; ErP; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT |
| Safety | USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS) |
| Software included | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional), HP SmartTracker (optional) |
| Dynamic security | Dynamic security enabled printer |
| Datasheet photo 1 | Publication photos/apj z9 tom.jpg |
| Acoustic power emissions (active, printing) | 6.0 B(A) (operating), 5.1 B(A) (idle), <3.4 B(A) (sleep) |
| Acoustic pressure emissions | 42 dB(A) (operating), 33 dB(A) (idle), <16 dB(A) (sleep) |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 5 to 40ºC |
| Storage temperature range | -25 to 55ºC |
| Manufacturer Warranty | 3 Years Limited Warranty |
| Print speed color image (best, glossy paper) | 3.5 m²/hr[1]; 38 ft²/hr[1] |
| Print speed | Fast: 55.7 m²/hr on plain media; Normal: 13.4 m²/hr on coated media; Best: 3.5 m²/hr on glossy media[1] |
| Print speed color image (draft, coated paper) | 38.2 m²/hr[1]; 411 ft²/hr[1] |
| Print speed color image (normal, coated paper) | 13.4 m²/hr[1]; 144 ft²/hr[1] |
| Print speed color image (normal, glossy paper) | 6.6 m²/hr[1]; 71 ft²/hr[1] |
| Maximum optical density (black) | 4 L* min/2.5 D[8] |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Minimum dimensions (W x D x H) | 1293 x 695 x 998 mm |
| Package dimensions (W x D x H) | 1440 x 766 x 718 mm |
| Non-printable area (cut-sheet) | 5 x 17 x 5 x 5 mm |
| Non-printable area (roll media) | 5 x 5 x 5 x 5 mm (borderless on selected media[3]) |
| UPC number | (ABA) 194441079937; (ABG) 192018667686; (ACJ) 196068887483; (B19) 192018667655; (B1K) 192018667662; (BCD) 192018667679 |
| Functions | |
| Theoretical minimum line width | 0.02 mm (PDF addressable @ 1200 dpi) |
| Color accuracy | Median < 1.6 dE2000, 95% of colors < 2.8 dE2000[7] |
| Color Stability | < 1 dE2000 in less than 5 minutes[8] |
| Model size | 610 mm |
| Internal Storage | 500 GB self-encrypting |
| Line accuracy | ±0.1%[5] |
| Guaranteed minimum line width | 0.08 mm (ISO/IEC 13660:2001(E))[6] |
| Printer drivers included | Raster and PostScript drivers for Windows and macOS; PDF driver for Windows 8 and above |
| Print languages | Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL |
| Print repeatability | Average < 0.5 dE2000, 95% of colors < 1.4 dE2000[8] |
| Printing path | Apple AirPrint, direct printing from USB flash drive, email printing, HP Click, HP driver for macOS, HP driver for Windows, HP driver for Linux, printing support for Chrome OS, HP Print Service Plugin for Android, HP Smart app for iOS and Android,... |
| Web address for additional information | http://www.hp.com/go/designjetZ9 |
| Additional information about HP in the countries | http://www.hp.com/uk |
| Additional information about HP | http://www.hp.com |
| Accessories | CN538A HP DesignJet 3-in Core Adapter;G6H51B HP HD Pro 42-in Scanner;G6H50B HP SD Pro 44-in Scanner;N7P47AA HP USB 3.0 to Gigabit LAN Adapter;CQ783A HP DesignJet 24-in Spindle;2QX55A HP Gloss Enhancer Upgrade Kit |
| Product long name specifications | HP DesignJet Z9+ 24-in PostScript Printer - Print: 55.7 m²/hr; Up to 2400 x 1200 optimized dpi colour; 128 GB (virtual); Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port |
| Facet Subcategory | Large format |
| Facet Product type | Professional Photo-quality Printers |
| Facet Sub brand | DesignJet |
| Facet Primary applications | Advertising posters, roll-ups, and banners; Photo and art; Design and illustrations; Indoor signage; Décor |
| Facet Media size maximum (in) | 24 |
| Facet Media size maximum (mm) | 610 |
| Facet Monthly printed pages | Very frequently |
| Facet Taxonomy | Large Format Printers/ Plotters |
