Product Description
Connect your DisplayPort® monitor to a standard Mini DisplayPort sourceThe StarTech.com Advantage
Features
- 0.1524 m

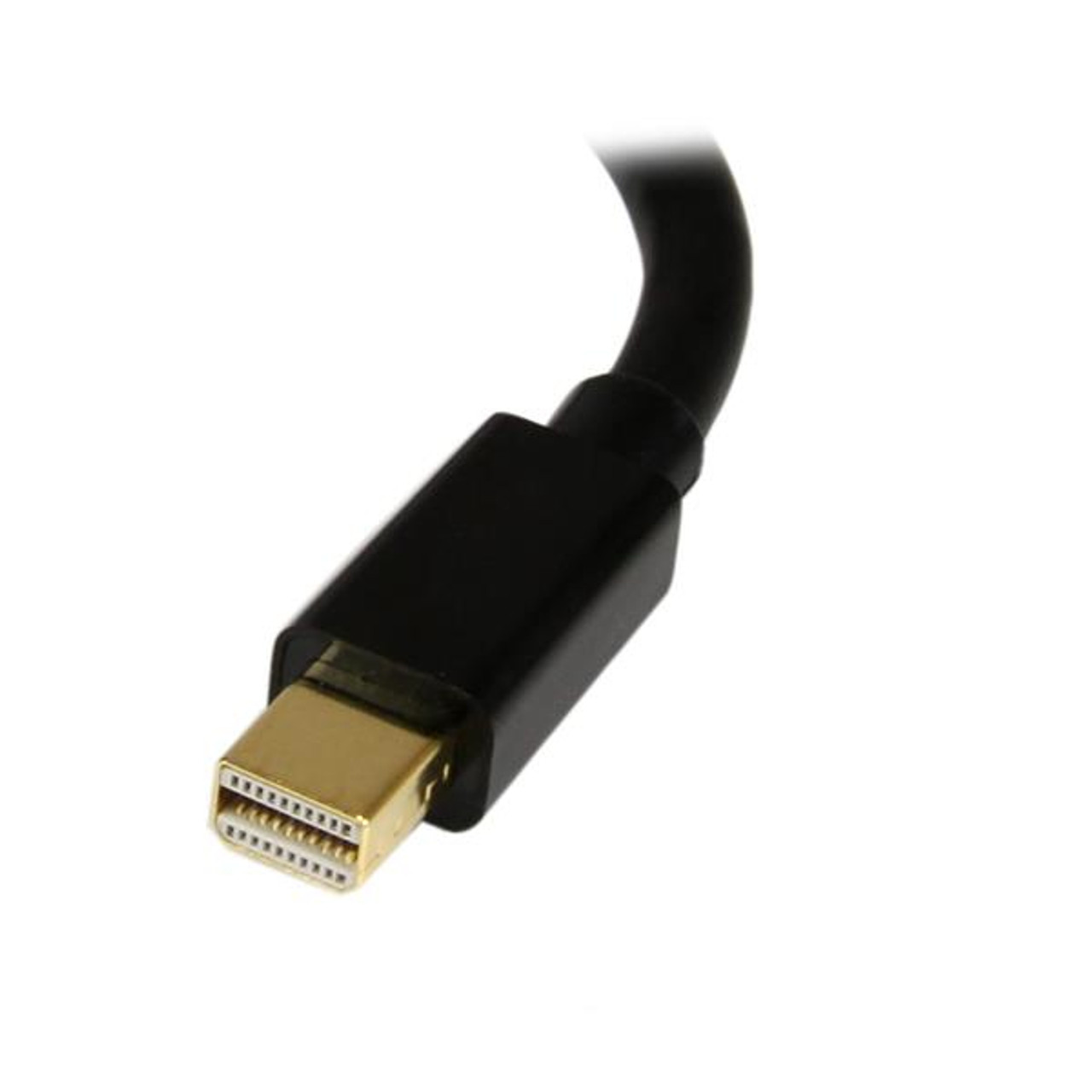

- Mini DisplayPort Straight Male
- DisplayPort Straight Female
- DisplayPort version: 1.2
- 3840 x 2400 pixels 120 Hz
- Plug and Play
- Black
Product Videos
Specifications
| Spec | Description |
|---|---|
| AWG wire size | 32 |
| Bandwidth | 21600MB/s |
| Cable diameter | 5mm |
| Cable length | 0.152m |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Connector 1 | Mini DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Harmonized System (HS) code | 84733080 |
| Jacket material | Polyvinyl chloride (PVC) |
| Master (outer) case height | 270mm |
| Master (outer) case length | 414mm |
| Master (outer) case width | 375mm |
| Maximum refresh rate | 120Hz |
| Maximum resolution | 3840 x 2400pixels |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 20 |
| Package depth | 227mm |
| Package height | 15mm |
| Package weight | 24g |
| Package width | 126mm |
| Plug and Play | Yes |
| Product colour | Black |
| Products per master (outer) case | 300pc(s) |
| Quantity per pack | 1pc(s) |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Sustainability certificates | CE, RoHS |
| Weight | 19g |
