Product Description

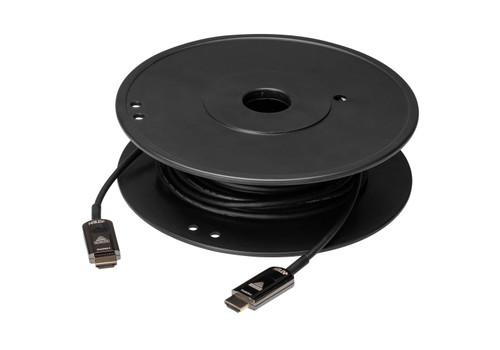

TEN VE781030 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 30m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781030 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Features
- 30 m
- HDMI Type A (Standard) Straight Male
- HDMI Type A (Standard) Straight Male
- HDMI version: 2.0
- 60 Hz 18 Gbit/s
- DTS-HD Master Audio, Dolby TrueHD
- 3D Audio Return Channel (ARC)
- Black
Product Videos
Specifications
| Spec | Description |
|---|---|
| 3D | Yes |
| Audio Return Channel (ARC) | Yes |
| Bandwidth | 600MHz |
| Cable diameter | 4.5mm |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 30m |
| Certification | CE / FCC/ REACH / UL VW-1/ EMC Class-A / Class-B |
| Connector 1 | HDMI Type A (Standard) |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Data transfer rate | 18Gbit/s |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Harmonized System (HS) code | 84733080 |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| Maximum refresh rate | 60Hz |
| Operating relative humidity (H-H) | 0 - 85% |
| Product colour | Black |
| Quantity per pack | 1pc(s) |
| Storage temperature (T-T) | -20 - 70°C |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Sustainability certificates | RoHS |
| Weight | 900g |
