Product Description
Overview

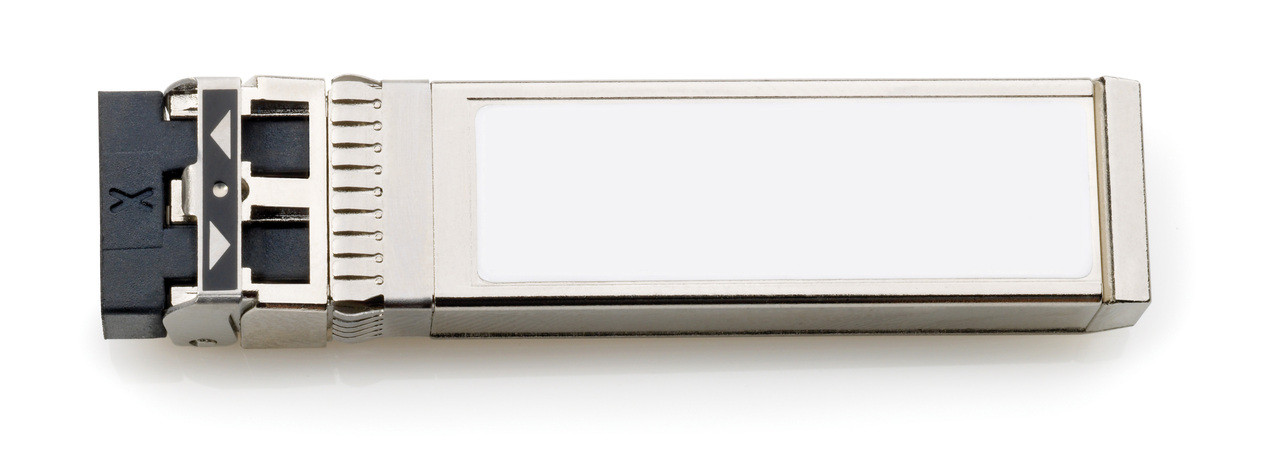

- Does interconnect reliability and reach impacting your infrastructure? HPE Networking Transceiver Options are designed to increase the performance of network connectivity, requiring high-bandwidth, low-latency connections between compute nodes, storage nodes, and switch nodes. To verify superior system performance, HPE Networking Transceiver Options, deliver compatibility with HPE Storage solutions and networking adapters.
Features
- Now supporting 400GbE interconnectivity, which may further breakout into 4x100GbE or 8x50GbE ports, depending upon the customers application.
- Allows Ethernet switches to deliver 100GbE ports, which may further breakout into four 25GbE ports or support for 40GbE, which can further breakout into four 10GbE ports.
- Designed to increase the performance of network connectivity, requiring high-bandwidth, and low-latency connections between compute nodes and switch nodes.
- HPE Networking Transceiver Options exceed industry requirements to deliver high performance and high quality resulting in low or no faults over solution life.
- QSFP-DD, QSFP56, QSFP28, SFP56, SFP28, and SFP+ form factors to reduce cost and improve reliability while delivering industry compatibility.
- Compliance with Restriction on Hazardous Substances (RoHS) directive.
- Transceivers are designed for growing bandwidth in data centers and providing high speed and efficient connectivity.
- Optimized port configuration enables high-speed rack connectivity to the server at 10GbE or 25GbE speeds with 100GbE uplink ports.
Product Videos
Specifications
Spec | Description |
---|---|
Trademark information | © Copyright 2017 Hewlett Packard Enterprise Development LP |
QuickSpecs | ##QUICKSPECS## |
QuickSpecs (PDF) | https://www.hpe.com/psnow/doc/a00021855enw.pdf?jumpid=in_pdp-psnow-qs |
QuickSpecs (HTML) | https://www.hpe.com/psnow/doc/a00021855enw.html?jumpid=in_pdp-psnow-qs |
QuickSpecs Date | ##QUICKSPECS##; 10/31/2028 12:00:00 AM; 01/16/2023 12:00:00 AM |
Quickspec Date | 11; ##QUICKSPECS## |
Connector type | LC, MPO8, MPO12, or MPO16 |
Fiber type | Multi Mode or Single Mode |
Product Dimensions (metric) | 6.63 (L) x 5.38 (W) x 1.44 (H) cm |
Product Dimensions (imperial) | 2.61 (L) x 2.12 (W) x 0.57 (H) in |
Weight | 2 kg; 4.4 lb |
Warranty | The information contained herein is subject to change without notice. The only warranties for HPE products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as... |
Maximum distance | 100m OM4 70m OM3 Single Mode out to 500m |
Ports | SFP+, SPF28, SFP56, QSFP+, QSFP28, QSFP56, QSFP-DD |
Wavelength | 850nm and 1310nm |
Transceiver form factor | Pluggable transceiver |
Cable type | Uses OM3/OM4 LC or MPO (8,12,16) Cabling |
UNSPSC code | 43201553 |
Facet Subcategory (facet) | Storage Tranceivers |
Facet Bandwidth (facet) | 10G |
Facet Transceiver function (facet) | SFP |
Facet Transceiver attribute (facet) | RJ-45 |
Facet Category (facet) | Transceivers |
Facet Cable type (facet) | Optical |
Facet Cable type (faceturl) | optical |
Facet Category (faceturl) | transceivers |
